796500-2

Active

TE Connectivity AMP Connectors

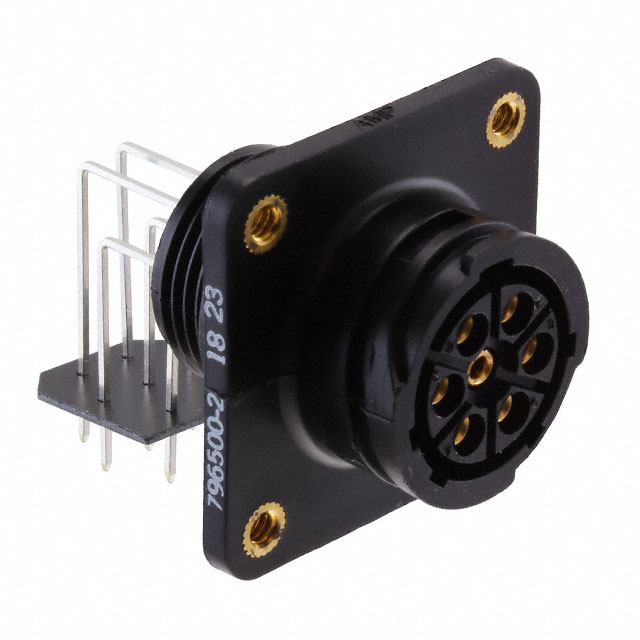

CONN RCPT FMALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT FMALE 7POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Specification	796500-2	796500 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Brass	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	13-7	13-7
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Part	Connector Type	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Orientation	Mounting Type	Contact Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Primary Material
TE Connectivity AMP Connectors 796500-2	Receptacle, Female Sockets	13-7	Gold	UL94 V-0	Keyed	Panel Mount, Right Angle, Through Hole	Brass	250 VAC	30 Áin	0.76 Ám	Flange	105 ░C	-55 °C	7	Solder	Plastic
TE Connectivity AMP Connectors 796500-1	Receptacle, Female Sockets	13-7	Gold	UL94 V-0	Keyed	Panel Mount, Right Angle, Through Hole	Brass	250 VAC	30 Áin	0.76 Ám	Flange	105 ░C	-55 °C	7	Solder	Plastic
