5-1393738-9

Active

TE Connectivity AMP Connectors

CONN BACKSHELL 9POS 37.5DEG SHLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BACKSHELL 9POS 37.5DEG SHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

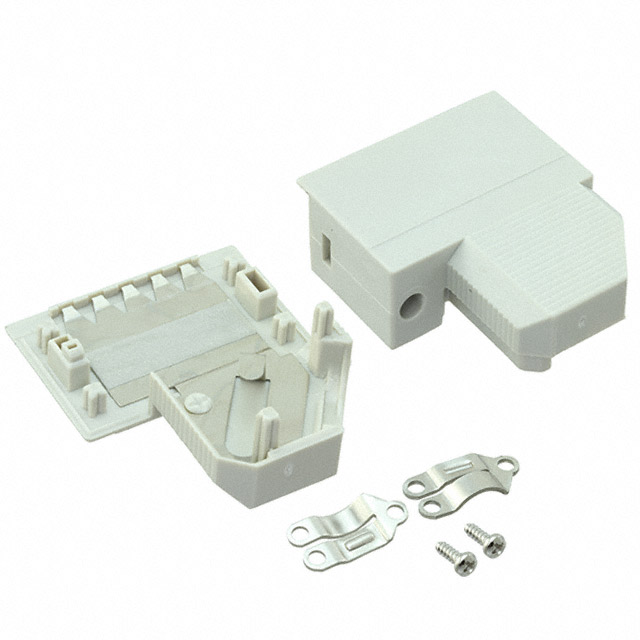

9 Position Two Piece Backshell Connector Gray 37.5° Shielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	5-1393738-9	1393738 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell
Cable Exit	37.5 °	37.5 °
Cable Type	Round	Round
Color	Gray	Gray
Compatible D-Sub Size	HD15pos, 9pos	50pos, HD78pos, HD15pos, 9pos, 37pos, HD62pos, HD44pos, 25pos
Compatible Shell Size	E	D, E, C, B
Material	-	Thermoplastic
Number of Positions	9	9 - 50
Plating	Nickel over Copper	Nickel over Copper
Primary Material	Plastic	Plastic
Shielding	Shielded	Shielded, Unshielded

CONN BACKSHELL 50P 37.5DEG SHLD

Part	Plating	Compatible D-Sub Size	Cable Type	Cable Exit	Shielding	Accessory Type	Primary Material	Number of Positions	Compatible Shell Size	Color	Material
TE Connectivity AMP Connectors 6-1393738-3	Nickel over Copper	50pos, HD78pos	Round	37.5 °	Shielded	Two Piece Backshell	Plastic	50	D	Gray
TE Connectivity AMP Connectors 5-1393738-3		9pos, HD15pos	Round	37.5 °	Unshielded	Two Piece Backshell	Plastic	9	E	Gray
TE Connectivity AMP Connectors 5-1393738-9	Nickel over Copper	9pos, HD15pos	Round	37.5 °	Shielded	Two Piece Backshell	Plastic	9	E	Gray
TE Connectivity AMP Connectors 6-1393738-2	Nickel over Copper	37pos, HD62pos	Round	37.5 °	Shielded	Two Piece Backshell	Plastic	37	C	Gray
TE Connectivity AMP Connectors 7-1393738-7		50pos, HD78pos	Round	37.5 °	Unshielded	Two Piece Backshell	Plastic	50	D	Gray
TE Connectivity AMP Connectors 6-1393738-1	Nickel over Copper	25pos, HD44pos	Round	37.5 °	Shielded	Two Piece Backshell	Plastic		B	Gray	Thermoplastic
TE Connectivity AMP Connectors 1-1393738-0		9pos, HD15pos	Round	37.5 °	Unshielded	Two Piece Backshell	Plastic	9	E	Gray	Thermoplastic
TE Connectivity AMP Connectors 5-1393738-8		37pos, HD62pos	Round	37.5 °	Unshielded	Two Piece Backshell	Plastic	37	C	Gray
TE Connectivity AMP Connectors 1393738-5	Nickel over Copper	50pos, HD78pos	Round	37.5 °	Shielded	Two Piece Backshell	Plastic	50	D	Gray
TE Connectivity AMP Connectors 1-1393738-2			Round	37.5 °	Unshielded	Two Piece Backshell				Gray
