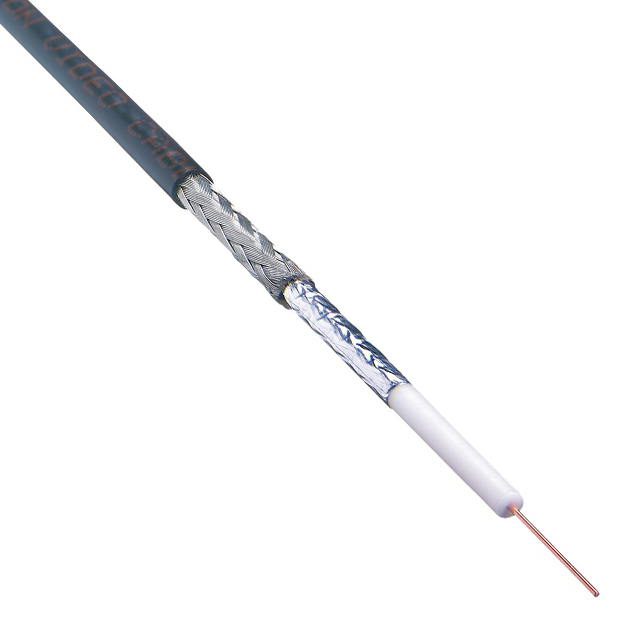

Specification	1855A 0101000

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter	0.102 in
Dielectric Material	Foam High Density Polyethylene (FHDPE)
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.159 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-30 °C
Shield Coverage	100%, 95%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Velocity of Propagation (VoP)	82 %
Wire Gauge	23 AWG

1855A Series

Part	Shield Coverage	Dielectric Material	Velocity of Propagation (VoP)	Conductor Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Diameter	Shield Material	Shield Type	Jacket Color	Usage	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Cable Type	Wire Gauge	Features	Length	Cable Group	Conductor Strand	Impedance	Length
Belden Inc. 1855A N3UN1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Green	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 007N1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Violet	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 0041000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Yellow	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 008N1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Gray	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 009N1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	White	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 0021000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Red	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 0101000	100% 95%	Foam High Density Polyethylene (FHDPE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Tinned	Braid Foil	Black		0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG		1000 ft		Solid	75 Ohm
Belden Inc. 1855A 010500	100% 95%	Foam High Density Polyethylene (FHDPE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Tinned	Braid Foil	Black		0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG		50 ft 100 ft 500 ft	RG-59	Solid	75 Ohm	Enter Number of Feet in Order Quantity
Belden Inc. 1855A 003N1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Orange	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid
Belden Inc. 1855A 010N1000	100% 95%	Polyethylene (PE)	82 %	Bare Copper	-30 °C	75 °C	0.102 in	Aluminum Copper Polyester Tinned	Braid Foil	Black	Video	0.159 in	Poly-Vinyl Chloride (PVC)	Coaxial	23 AWG	UV Resistant	1000 ft	RG-59 Mini	Solid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1855A 0101000 | Datasheet
