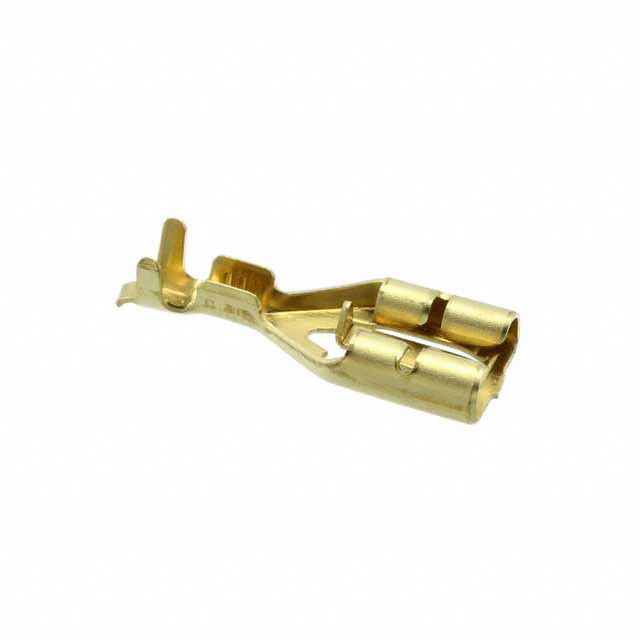

1380088-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-20AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-20AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	1380088-1

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.106 "
Insulation Diameter [Max] [diameter]	2.69 mm
Insulation Diameter [Min] [diameter]	2 mm
Insulation Diameter [Min] [diameter]	0.079 in
Length - Overall [x]	0.377 in
Length - Overall [x]	9.58 mm
Mounting Type	Free Hanging (In-Line)
Tab Length [x]	7.44 mm
Tab Length [x]	0.293 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17 AWG

CONN QC RCPT 17-20AWG 0.250

Part	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Length [x]	Tab Length [x]	Terminal Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Gender	Contact Material
TE Connectivity AMP Connectors 1380088-1	0.377 in	9.58 mm	0.032 in	0.81 mm	6.35 mm	0.25 in	Non-Insulated	17 AWG	20 AWG	Free Hanging (In-Line)	7.44 mm	0.293 in	Standard	0.106 "	2.69 mm	2 mm	0.079 in	Crimp	Female	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
