LCBS-TM-16-01
ActiveEssentra Access Solutions

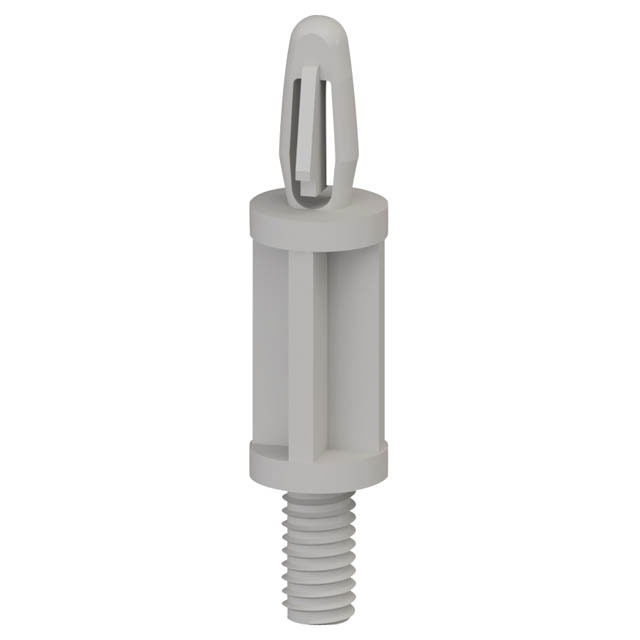

BRD SPT SNAP LOCK THREAD STUD 1"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-TM-16-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK THREAD STUD 1"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-TM-16-01 |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Features | 6-32 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 43.2 mm |
| Length - Overall [x] | 1.701 in |
| Material | Nylon |
| Mounting Type | Threaded Stud |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 5 | $ 0.61 | |||
| 10 | $ 0.57 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
Description
General part information
LCBS-TM Series
Board Support Snap Lock / Threaded Stud Nylon 1.000" (25.40mm) 1"
