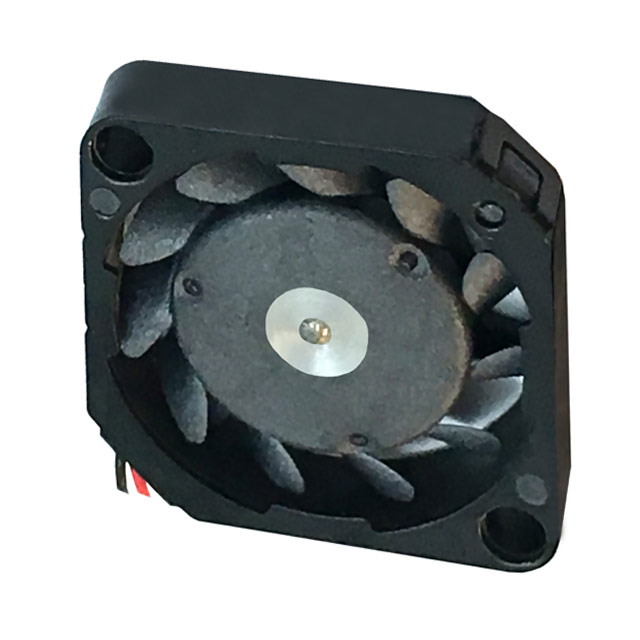

ASB01503HA3-00CYN
ActiveDelta Electronics
DC FAN AXIAL SLEEVE BEARING 3V 2V TO 3.5V 0.28CFM 31DB 15.4 X 15.4 X 3.4MM
Deep-Dive with AI
Search across all available documentation for this part.
ASB01503HA3-00CYN
ActiveDelta Electronics
DC FAN AXIAL SLEEVE BEARING 3V 2V TO 3.5V 0.28CFM 31DB 15.4 X 15.4 X 3.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASB01503HA3-00CYN |
|---|---|
| Air Flow | 0.008 m³/min |
| Air Flow | 0.28 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 50 mA |
| Fan Type | Blower |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 31 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 mW |
| RPM | 14500 RPM |
| Size / Dimension [x] | 15.4 mm |
| Size / Dimension [y] | 15.4 mm |
| Static Pressure | 0.075 in H2O |
| Static Pressure | 18.6 Pa |
| Termination | 3 Position Rectangular Connector |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 3.5 VDC |
| Voltage Range [Min] | 2 V |
| Weight | 1.36 g |
| Weight | 0.003 lb |
| Width [x] | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.62 | |
| 10 | $ 17.77 | |||
| 25 | $ 16.08 | |||
| 50 | $ 14.81 | |||
| 100 | $ 13.29 | |||
| 322 | $ 12.27 | |||
| 644 | $ 11.43 | |||
Description
General part information
ASB01503 Series
Fan Blower 3VDC Square - 15.4mm L x 15.4mm H Sleeve 0.280 CFM (0.008m³/min) 3 Position Rectangular Connector
