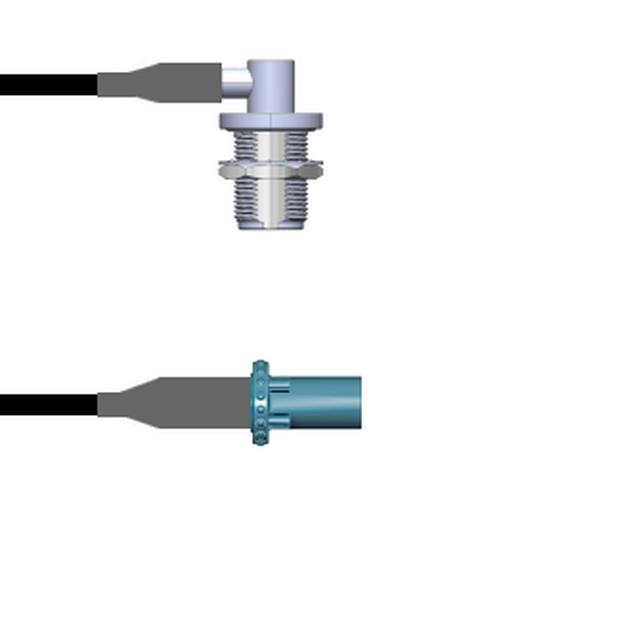

Q-1S05B00082.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JCK-PL 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S05B00082.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JCK-PL 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S05B00082.5M

1st Connector	N-Type Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1S05B0 Series

Part	2nd Connector Mounting Type	Style	Frequency - Max [Max]	1st Contact Gender	Cable Type	Length	Length	Length	Color	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	Overall Impedance	1st Connector	1st Connector Mounting Feature	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-1S05B0008003M	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	3 m	118.1 in	9.8 '	Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008036i	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	91.44 cm	36 in		Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B00081.5M	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	1.5 m	59.1 in	4.9 ft	Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008002M	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	2 m	78.7 in	6.6 ft	Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008006i	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	152.4 mm	6 in		Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008018i	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58				Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S05B0008072i	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	1.8 m	72 in	6 ft	Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008.75M	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	750 mm	29.53 "		Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B00082.5M	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	2.5 m	98.4 in	8.2 '	Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded
Amphenol Custom Cable Q-1S05B0008024i	Free Hanging (In-Line)	N-Type to Fakra	3 GHz	Female	RG-58	609.6 mm	24 "		Black	Fakra Plug	Panel Mount	Male	50 Ohms	N-Type Jack Right Angle	Bulkhead - Front Side Nut	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.11
		25	$ 106.44
		50	$ 98.78
		100	$ 92.22
		250	$ 86.74

Description

General part information

Q-1S05B0 Series

Cable Assembly Coaxial N-Type to Fakra RG-58 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
