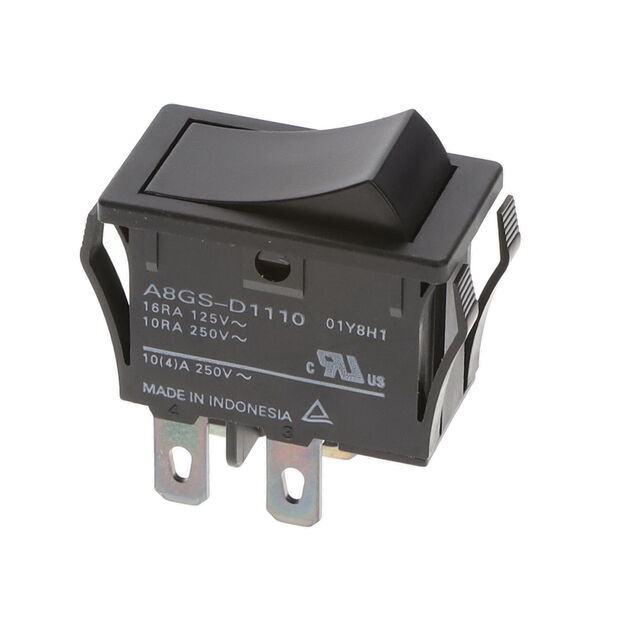

A8GS-D1110

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A8GS-D1110	A8GS-D111 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	cULus, EN, UL	cULus, EN, UL
Circuit	DPST	DPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	16 A	16 A
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Remote Reset Function
Mechanical Life	30000 Steps	30000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Panel Cutout Dimensions [x]	27.7 mm	27.7 mm
Panel Cutout Dimensions [y]	15.2 mm	15.2 mm
Switch Function	On-Off	On-Off
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPST 16A 125V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Mounting Type	Mechanical Life	Circuit	Actuator Type	Electrical Life	Switch Function	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Color - Actuator/Cap	Voltage Rating - AC	Termination Style	Features
Omron Electronics Inc-EMC Div A8GS-D1110	15.2 mm	27.7 mm	cULus, EN, UL	Panel Mount, Snap-In	30000 Steps	DPST	Concave (Curved)	10000 Cycles	On-Off	16 A	No Marking	55 °C	-10 °C	Black	125 V	Solder Lug
Omron Electronics Inc-EMC Div A8GS-D1115	15.2 mm	27.7 mm	cULus, EN, UL	Panel Mount, Snap-In	30000 Steps	DPST	Concave (Curved)	10000 Cycles	On-Off	16 A	No Marking	55 °C	-10 °C	Black	125 V	Solder Lug	Remote Reset Function

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
