03-616.011
ActiveEAO

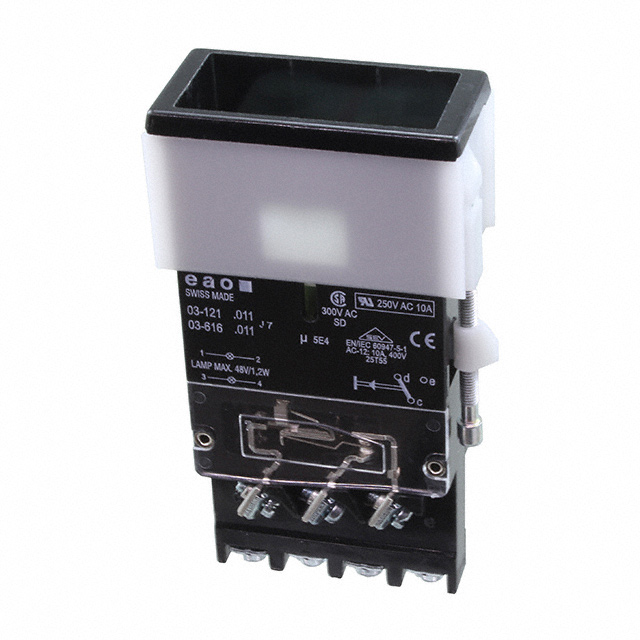

SWITCH PB SPDT 10A 400V
Deep-Dive with AI
Search across all available documentation for this part.
03-616.011
ActiveEAO
SWITCH PB SPDT 10A 400V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 03-616.011 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 41.2 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 90.01 | |
| 10 | $ 82.01 | |||
| 25 | $ 76.51 | |||
| 50 | $ 73.51 | |||
| 100 | $ 68.51 | |||
03-616 Series
SWITCH PB SPDT 10A 400V
| Part | Ingress Protection | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - AC | Mechanical Life | Actuator Type | Actuator Marking | Termination Style | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current Rating (Amps) | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 03-616.011 | IP40 | 41.2 mm | 21.2 mm | 400 V | 2000000 Cycles | Rectangular, Button (Not Included) | No Marking | Screw Terminal | Panel Mount, Front | On-Mom | 55 °C | -25 °C | Standard | 10 A | SPDT |
Description
General part information
03-616 Series
Pushbutton Switch SPDT Standard Panel Mount, Front
Documents
Technical documentation and resources
No documents available
