Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PI5C3257LE | PI5C3257 Series |
|---|---|---|
| - | - | |
| Circuit [custom] | 4 | 4 |
| Circuit [custom] | 2:1 | 2:1 |
| Independent Circuits | 1 | 1 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 16-TSSOP | 16-SOIC, 16-SSOP (0.154", 3.90mm Width), 16-TSSOP |
| Package / Case | - | 0.154 - 3.9 mm Width |
| Package / Case [x] | 0.173 " | 0.173 " |
| Package / Case [x] | 4.4 mm | 4.4 mm |
| Supplier Device Package | 16-TSSOP | 16-SOIC, 16-QSOP, 16-TSSOP |
| Type | Multiplexer/Demultiplexer | Multiplexer/Demultiplexer |
| Voltage - Supply [Max] | 5.25 V | 5.25 V |
| Voltage - Supply [Min] | 4.75 V | 4.75 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Farnell | N/A | 1 | $ 0.74 | |
| 10 | $ 0.59 | |||
| Future Electronics | N/A | 96 | $ 0.29 | |
| 384 | $ 0.29 | |||
| 1440 | $ 0.28 | |||
| 3840 | $ 0.28 | |||
| 9600 | $ 0.27 | |||
| LCSC | N/A | 1 | $ 0.96 | |
| 10 | $ 0.94 | |||
| 30 | $ 0.92 | |||
| 100 | $ 0.87 | |||
| Mouser Electronics | N/A | 1 | $ 0.76 | |
| 10 | $ 0.63 | |||
| 96 | $ 0.50 | |||
| 576 | $ 0.48 | |||
| 1056 | $ 0.43 | |||
| 2592 | $ 0.39 | |||
| 5088 | $ 0.37 | |||
| 10080 | $ 0.36 | |||
PI5C3257 Series
IC MUX/DEMUX 4 X 2:1 16SOIC
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Circuit [custom] | Circuit [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Independent Circuits | Mounting Type | Type | Package / Case | Supplier Device Package | Voltage Supply Source | Package / Case | Package / Case [x] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Incorporated PI5C3257SE | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-SOIC | 16-SOIC | Single Supply | |||
Diodes Incorporated PI5C3257QEX | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-SSOP (0.154", 3.90mm Width) | 16-QSOP | Single Supply | |||
Diodes Incorporated PI5C3257QEX-1516 | |||||||||||||||
Diodes Incorporated PI5C3257Q | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-SSOP (0.154", 3.90mm Width) | 16-QSOP | Single Supply | |||
Diodes Incorporated PI5C3257WE | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-SOIC | 16-SOIC | Single Supply | 0.154 in, 3.9 mm Width | ||
Diodes Incorporated PI5C3257WEX | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-SOIC | 16-SOIC | Single Supply | 0.154 in, 3.9 mm Width | ||
Diodes Incorporated PI5C3257LE | 4.75 V | 5.25 V | 4 | 2:1 | -40 °C | 85 °C | 1 | Surface Mount | Multiplexer/Demultiplexer | 16-TSSOP | 16-TSSOP | Single Supply | 0.173 " | 4.4 mm |
Description
General part information
PI5C3257 Series

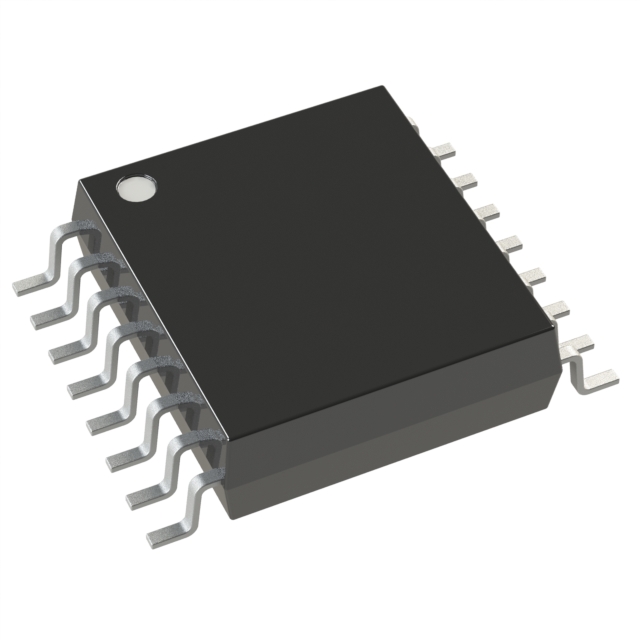

Multiplexer/Demultiplexer 4 x 2:1 16-TSSOP
