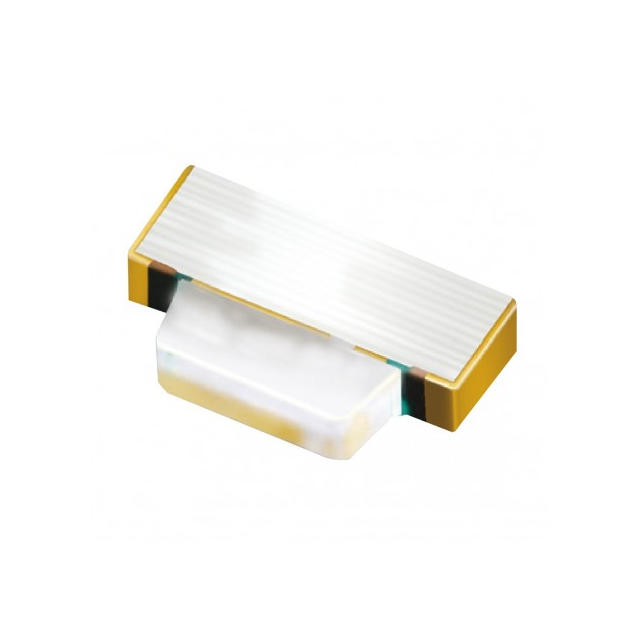

EASV1803BA0
ActiveEverlight Electronics Co Ltd
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EASV1803BA0
ActiveEverlight Electronics Co Ltd
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EASV1803BA0 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.35 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.3 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 40 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.26 | |||
| 100 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.26 | |||
| 100 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
Description
General part information
EASV1803 Series
Blue 470nm LED Indication - Discrete 3V 2-SMD, No Lead
