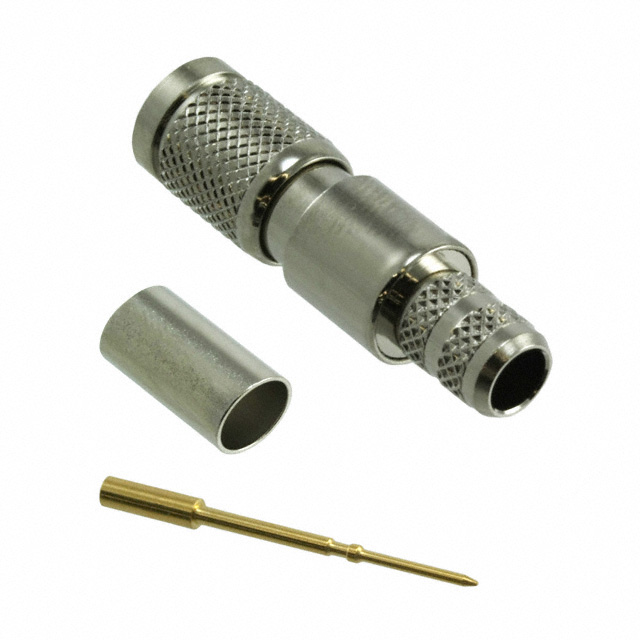

282135-75

Active

Amphenol RF

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	282135-75

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 1505A, AT&T 734, 734A
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Includes	Mounting Type	Connector Style	Contact Termination	Center Contact Plating	Body Finish	Number of Ports	Center Contact Material	Voltage Rating	Housing Color	Dielectric Material	Body Material	Frequency - Max [Max]	Connector Type	Fastening Type	Shield Termination	Cable Group
Amphenol RF 282135-75	75 Ohms	-65 ░C	165 °C	500	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	1.0/2.3	Crimp	Gold	Nickel	1	Beryllium Copper Brass	250 VDC	Silver	Polytetrafluoroethylene (PTFE)	Brass	3 GHz	Male Pin Plug	Push-Pull	Crimp	734A AT&T 734 Belden 1505A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
