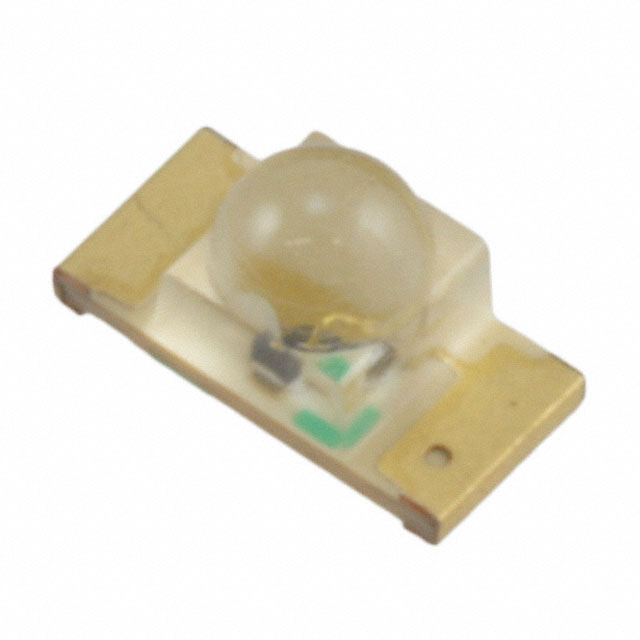

Specification	APTD3216SF4C

Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Radiant Intensity (Ie) Min	1.6 mW/sr
Type	Infrared (IR)
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

APTD3216 Series

Part	Current - Test	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Color	Size / Dimension Width	Size / Dimension Length	Lens Diameter	Package Name	Package / Case	Lens Style	Height (Max)	Configuration	Viewing Angle	Lens Color	Millicandela Rating	Wavelength - Peak	Mounting Type	Lens Transparency	Orientation	Voltage - Collector Emitter Breakdown (Max)	Current - Dark (Id) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Wavelength	Power - Max	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min	Type
Kingbright APTD3216PBC/A	20 mA	3.2 V	470 nm	Blue	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	50 °	Colorless	400 mcd	468 nm	Surface Mount	Clear
Kingbright APTD3216LQBC/D	2 mA	2.65 V	465 nm	Blue	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	30 °	Colorless	100 mcd	460 nm	Surface Mount	Clear
Kingbright APTD3216SRCPRV	20 mA	1.85 V	640 nm	Red	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	35 °	Colorless	150 mcd	655 nm	Surface Mount	Clear
Kingbright APTD3216P3C-P22									1206 (3216 Metric)				40 °				Surface Mount		Top View	30 V	100 nA	-40 °C	85 °C	940 nm	100 mW
Kingbright APTD3216F3C-P22		1.2 V							1206 (3216 Metric)				40 °				Surface Mount		Top View			-40 °C	85 °C	940 nm		50 mA	2 mW/sr	Infrared (IR)
Kingbright APTD3216-PZ23
Kingbright APTD3216SECK	20 mA	2.1 V	601 nm	Orange	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	40 °	Colorless	1000 mcd	610 nm	Surface Mount	Clear
Kingbright APTD3216LSYCK	2 mA	1.85 V	590 nm	Yellow	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	40 °	Colorless	40 mcd	590 nm	Surface Mount	Clear
Kingbright APTD3216SF4C		1.3 V							1206 (3216 Metric)				50 °				Surface Mount		Top View			-40 °C	85 °C	880 nm		50 mA	1.6 mW/sr	Infrared (IR)
Kingbright APTD3216SGC	20 mA	2.2 V	568 nm	Green	1.6 mm	3.2 mm	1.6 mm	2-SMD	1206 (3216 Metric)	Domed Top Round	1.9 mm	Standard	35 °	Colorless	50 mcd	565 nm	Surface Mount	Clear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

APTD3216SF4C | Datasheet
