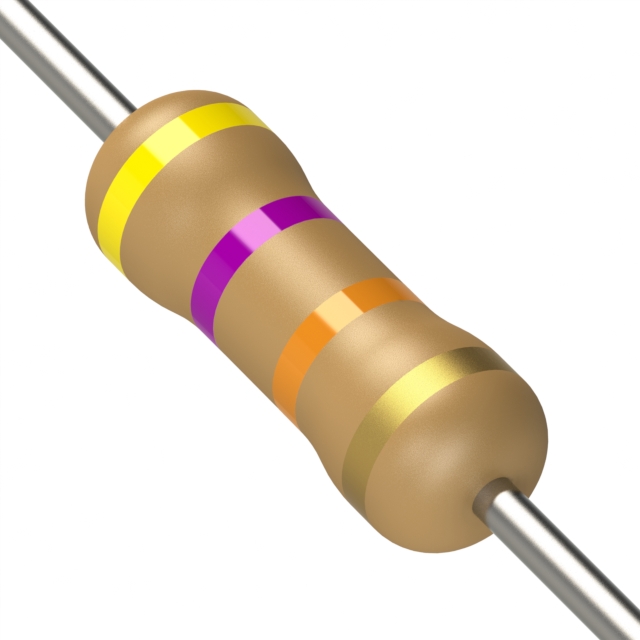

CF1/2C473J

Active

KOA Speer Electronics, Inc.

RES 47K OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF1/2C473J

Active

KOA Speer Electronics, Inc.

RES 47K OHM 5% 1/2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.17
		100	$ 0.07
		1000	$ 0.03
		5000	$ 0.02
		10000	$ 0.02

Description

General part information

CF1/2 Series

47 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF1/2C473J	CF1/2 Series

Composition	Carbon Film	Carbon Film
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.5 W	0.5 W
Power (Watts)	0.5 W	0.5 W
Resistance	47 kOhms	1.2 - 10000 Ohms
Size / Dimension [diameter]	3 mm	3 mm
Size / Dimension [diameter]	0.118 in	0.118 in
Size / Dimension [x]	0.335 "	0.335 "
Size / Dimension [x]	8.5 mm	8.5 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient [Max]	350 ppm/°C	-700 - 350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C	-1300 - 0 ppm/°C
Tolerance	5 %	5 %

CF1/2 Series

RES 2.2K OHM 5% 1/2W AXIAL

Part	Package / Case	Number of Terminations	Resistance	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Supplier Device Package	Composition
KOA Speer Electronics, Inc. CF1/2C222J	Axial	2	2200 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R103J	Axial	2	10000 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R2R7J	Axial	2	2.7 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R131J	Axial	2		5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2C473J	Axial	2	47 kOhms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R151J	Axial	2	150 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R201J	Axial	2	200 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R390J	Axial	2	39 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R241J	Axial	2	240 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
KOA Speer Electronics, Inc. CF1/2CT52R470J	Axial	2	47 Ohms	5 %	155 °C	-55 °C	350 ppm/°C	-450 ppm/°C	3 mm	0.335 "	0.118 in	8.5 mm	0.5 W	0.5 W	Axial	Carbon Film
