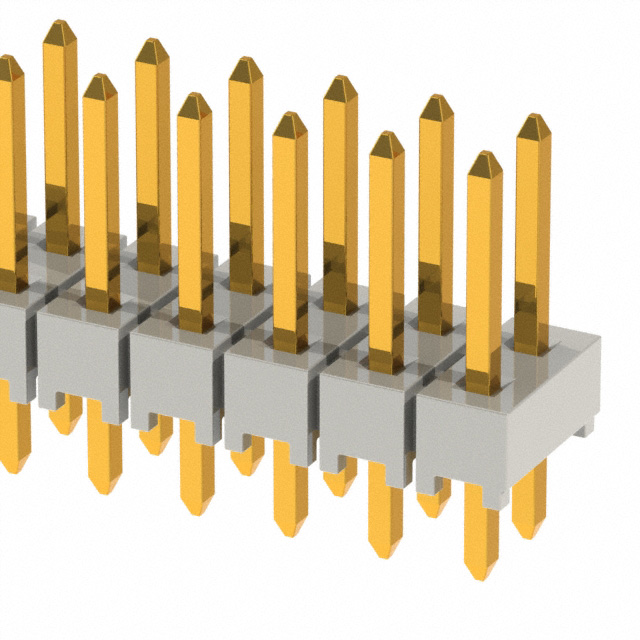

HTSW-137-07-G-D

Active

Samtec Inc.

CONN HEADER VERT 74POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 74POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-137-07-G-D

null

Part	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Style	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Insulation Height	Insulation Height	Shrouding	Number of Positions	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Current Rating (Amps)	Contact Type	Mounting Type	Connector Type	Number of Rows
Samtec Inc. HTSW-137-07-G-D
Samtec Inc. HTSW-137-07-G-S	Solder	Gold	10 çin	0.25 çm	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	Square	Natural	Board to Board Cable	0.43 in	10.92 mm	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Unshrouded	37	All	0.23 in	5.84 mm	3 µin	0.076 µm	2.54 mm	0.1 in	UL94 V-0	Varies by Wire Gauge	Male Pin	Through Hole	Header	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.67

General part information

Connector Header position

Technical documentation and resources
