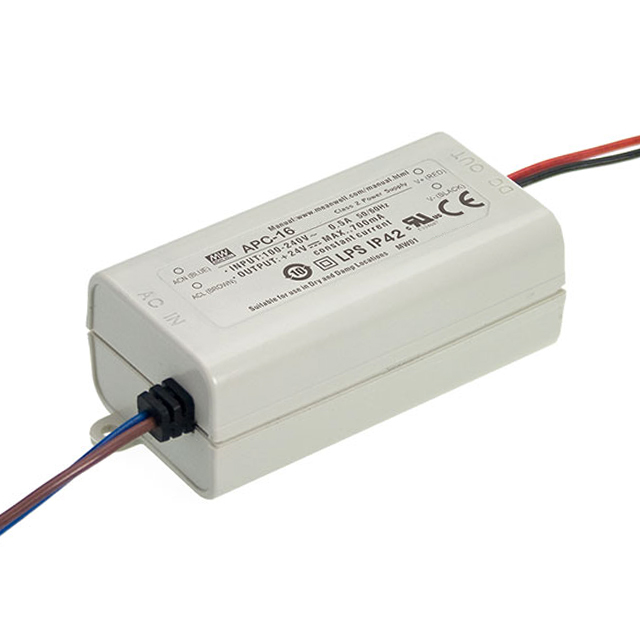

APC-16-350
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 12-48V 350MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APC-16-350
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 12-48V 350MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APC-16-350 |
|---|---|
| Approval Agency | CCC, CE, cURus |
| Current - Output (Max) [Max] | 350 mA |
| Efficiency | 84 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 17 W |
| Ratings | IP42 |
| Size / Dimension [x] | 3.03 in |
| Size / Dimension [x] | 77 mm |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [z] | 29 mm |
| Size / Dimension [z] | 1.14 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 48 V |
| Voltage - Output [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.31 | |
| 5 | $ 7.70 | |||
| 10 | $ 7.46 | |||
| 25 | $ 7.14 | |||
Description
General part information
APC-16 Series
350mA 12 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
