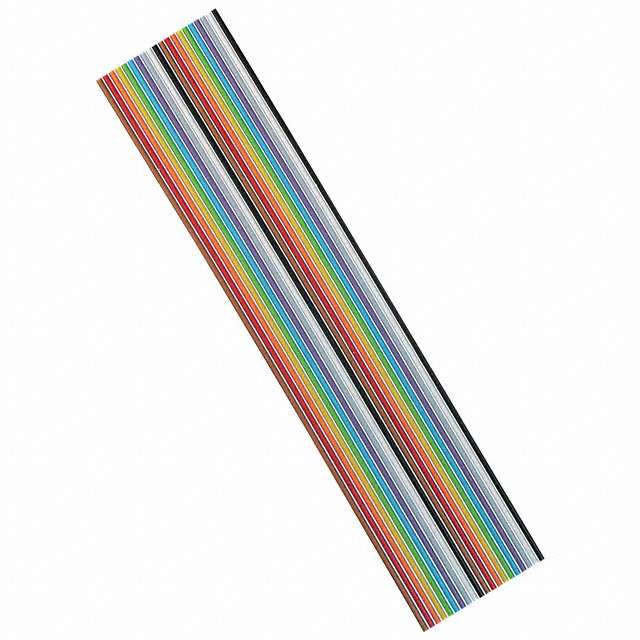

AWG28-20/F/300

Unknown

Assmann WSW Components

FLAT RIBBON CABLE 20CONDUCTORS 28AWG 300V MULTI COLOR 91.44M REEL

Search across all available documentation for this part.

Unknown

Assmann WSW Components

FLAT RIBBON CABLE 20CONDUCTORS 28AWG 300V MULTI COLOR 91.44M REEL

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-20/F/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	Enter Number of Feet in Order Quantity
Length	15.24 m
Length	50 ft
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	20
Operating Temperature	105 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1 in
Ribbon Width	25.4 mm
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Conductor Material	Shielding	First Conductor Mark	Jacket Color	Length	Ribbon Width	Ribbon Width	Ratings	Pitch [x]	Pitch [x]	Operating Temperature	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Cable Type	Length [x]	Length [x]	Spool Size	Spool Size	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Wire Gauge	Voltage	Length	Length
Assmann WSW Components AWG28-20/F/300	Copper Tinned	Unshielded	Red	Multiple	Enter Number of Feet in Order Quantity	1 in	25.4 mm	UL Style 2651	0.05 in	1.27 mm	105 C	0.89 mm	0.035 in	100 MOhms	Flat Cable	3.05 m	10 ft	300 ft	91.44 m	Poly-Vinyl Chloride (PVC)	7	36 AWG	20	28 AWG	300 V	15.24 m	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Multiple 20 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
