Technical Specifications
Parameters and characteristics for this part

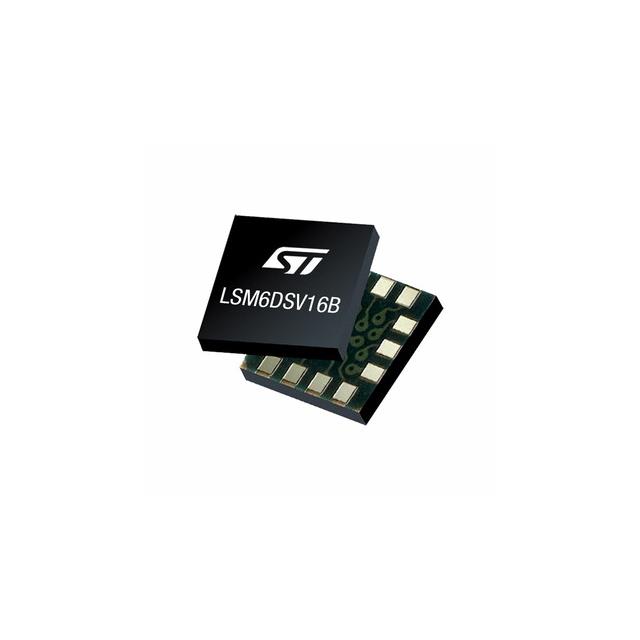

| Specification | LSM6DSV16BTR |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, I3C, SPI |
| Package / Case | 14-WFLGA |
| Sensor Type | 6 Axis, Temperature, Accelerometer, Gyroscope |
| Supplier Device Package | 14-LGA (2.5x3) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.91 | |
| 10 | $ 5.37 | |||
| 100 | $ 3.94 | |||
| 500 | $ 3.35 | |||
| Digi-Reel® | 1 | $ 7.91 | ||
| 10 | $ 5.37 | |||
| 100 | $ 3.94 | |||
| 500 | $ 3.35 | |||
| Tape & Reel (TR) | 10000 | $ 3.35 | ||
Description
General part information
LSM6DSV16B Series
The LSM6DSV16B is a system-in-package inertial measurement unit (IMU) featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope with dual channels for processing acceleration and angular rate sensing data for motion tracking (user interface, device power management, 3D head tracking for gaming and an enhanced audio experience) as well as vibration detection for bone conduction on separate channels with dedicated configuration, processing, and filtering.
The motion tracking in high-performance mode runs at 0.6 mA and enables always-on low-power features for an optimal motion experience.
The LSM6DSV16B embeds advanced dedicated features and data processing for motion processing like the finite state machine (FSM), sensor fusion low power (SFLP), and adaptive self-configuration (ASC).
Documents
Technical documentation and resources
