EM-SGL-PG29-MET-C

Active

TE Connectivity Raychem Cable Protection

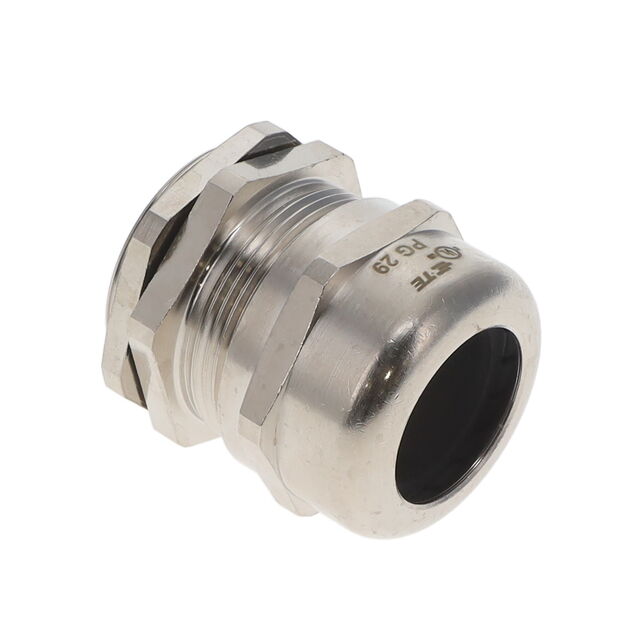

CABLE GLND 18.01-25MM PG29 BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLND 18.01-25MM PG29 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-PG29-MET-C

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG29
Type	Cable Gland

Part	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
TE Connectivity Raychem Cable Protection EM-SGL-PG29-MET-C	8 mm	0.315 in	PG29	Cable Gland	0.984 in	25 mm	Brass Nickel Plated	Silver	100 °C	-20 C	Locknut Seal	IP68 - Dust Tight Waterproof	0.709 in	18.01 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG29 Silver
