TL1107AF130WQ

Active

E-Switch

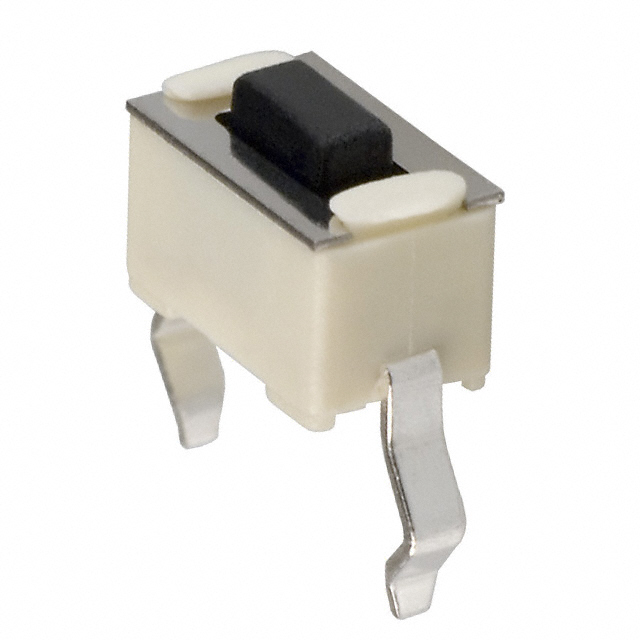

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.3N

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.3N

Technical Specifications

Parameters and characteristics for this part

Specification	TL1107AF130WQ

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	40000 Cycles
Mounting Type	Through Hole
Operating Force	130 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Height off PCB, Vertical [z]	Features	Switch Function	Mounting Type	Actuator Orientation	Circuit	Operating Force	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Outline [y]	Outline [x]	Illumination	Mechanical Life	Switch Travel	Termination Style	Contact Rating @ Voltage	Actuator Height off PCB, Vertical
E-Switch TL1107AF260WQ	4.3 mm	Tactile Feedback	Off-Mom	Through Hole	Top Actuated	SPST-NO	260 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated	30000 Steps	0.25 mm	PC Pin	0.05 A 12 VDC
E-Switch TL1107BF180EQ		Tactile Feedback	Off-Mom		Top Actuated	SPST-NO	180 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated		0.25 mm	PC Pin	0.05 A 12 VDC	5 mm
E-Switch TL1107AF130WQ	4.3 mm	Tactile Feedback	Off-Mom	Through Hole	Top Actuated	SPST-NO	130 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated	40000 Cycles	0.25 mm	PC Pin	0.05 A 12 VDC
E-Switch TL1107BF180BQ		Tactile Feedback	Off-Mom	Through Hole	Top Actuated	SPST-NO	180 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated		0.25 mm	PC Pin	0.05 A 12 VDC	5 mm
E-Switch TL1107BF260EQ		Tactile Feedback	Off-Mom		Top Actuated	SPST-NO	260 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated	30000 Steps	0.25 mm	PC Pin	0.05 A 12 VDC	5 mm
E-Switch TL1107AF130EQ	4.3 mm	Tactile Feedback	Off-Mom		Top Actuated	SPST-NO	130 gf	Nylon 4/6 Polyamide (PA46)	-20 C	70 °C	Rectangular Button	3.5 mm	6 mm	Non-Illuminated		0.25 mm	PC Pin	0.05 A 12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
