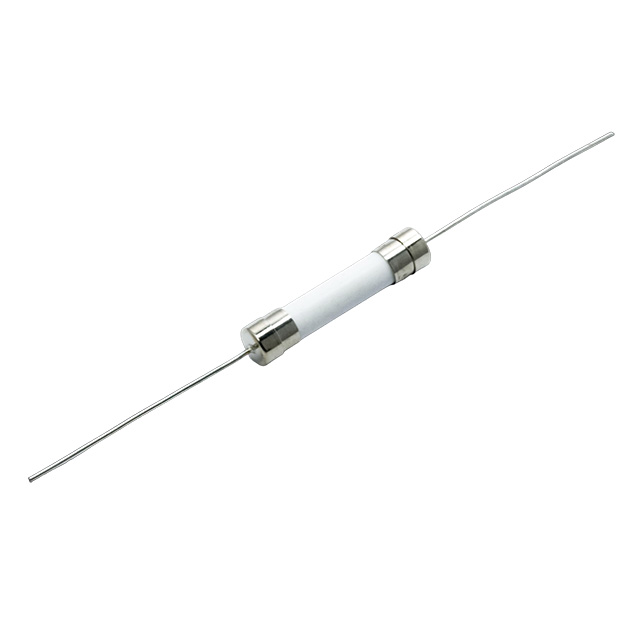

FCA-P-3A

Active

OptiFuse

FUSE CERAMIC 3A 250VAC 3AB 3AG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCA-P-3A

Active

OptiFuse

FUSE CERAMIC 3A 250VAC 3AB 3AG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCA-P-3A

Approval Agency	UL 248, cULus
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	3 A
Fuse Type	Cartridge, Ceramic
Melting I˛t	8.085
Mounting Type	Through Hole
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Fast Blow
Size / Dimension [diameter]	6.85 mm
Size / Dimension [diameter]	0.27 in
Size / Dimension [x]	32.4 mm
Size / Dimension [x]	1.276 in
Voltage Rating - AC	250 V

FCA Series

Part	Fuse Type	Current Rating (Amps)	Approval Agency	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Melting I˛t	Voltage Rating - AC	Package / Case	Package / Case [y]	Package / Case [x]	Melting I²t	Size / Dimension [x]	Size / Dimension [x]
OptiFuse FCA-500MA	Cartridge Ceramic	0.5 A	cULus UL 248	Fast Blow	Requires Holder	100 A	1.252 in	31.8 mm	6.35 mm	0.25 in	0.0385	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-2A	Cartridge Ceramic	2 A	cULus UL 248	Fast Blow	Requires Holder	100 A	1.252 in	31.8 mm	6.35 mm	0.25 in	2.751	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-10A	Cartridge Ceramic	10 A	cULus UL 248	Fast Blow	Requires Holder	200 A	1.252 in	31.8 mm	6.35 mm	0.25 in	246.5	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-15A	Cartridge Ceramic	15 A	cULus UL 248	Fast Blow	Requires Holder	750 A	1.252 in	31.8 mm	6.35 mm	0.25 in	666.8	250 V	3AB 3AG	1-1/4	1/4	666.8
OptiFuse FCA-1A	Cartridge Ceramic	1 A	cULus UL 248	Fast Blow	Requires Holder	100 A	1.252 in	31.8 mm	6.35 mm	0.25 in	0.288	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-750MA	Cartridge Ceramic	750 mA	cULus UL 248	Fast Blow	Requires Holder	100 A	1.252 in	31.8 mm	6.35 mm	0.25 in	0.1361	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-9A	Cartridge Ceramic		cULus UL 248	Fast Blow	Requires Holder	200 A	1.252 in	31.8 mm	6.35 mm	0.25 in	185.2	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-P-3A	Cartridge Ceramic	3 A	cULus UL 248	Fast Blow	Through Hole	100 A			6.85 mm	0.27 in	8.085	250 V	3AB 3AG	1-1/4	1/4		32.4 mm	1.276 in
OptiFuse FCA-6A	Cartridge Ceramic	6 A	cULus UL 248	Fast Blow	Requires Holder	200 A	1.252 in	31.8 mm	6.35 mm	0.25 in	61.66	250 V	3AB 3AG	1-1/4	1/4
OptiFuse FCA-25A	Cartridge Ceramic	25 A	cURus UL 248	Fast Blow	Requires Holder	100 A	1.252 in	31.8 mm	6.35 mm	0.25 in	2586	250 V	3AB 3AG	1-1/4	1/4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.19
		10	$ 1.16
		25	$ 1.12
		50	$ 0.94
		100	$ 0.77
		250	$ 0.70
		500	$ 0.59
		1000	$ 0.51

Description

General part information

FCA Series

3 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
