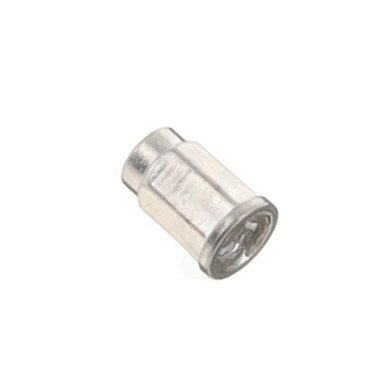

8894-0-15-80-12-84-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPin Receptacles (metric)
8894-0-15-80-12-84-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
DocumentsPin Receptacles (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 8894-0-15-80-12-84-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.022 in |
| Accepts Pin Diameter [Max] | 0.56 mm |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.068 in |
| Flange Diameter [diameter] | 1.73 mm |
| Length - Overall [x] | 0.1 " |
| Length - Overall [x] | 2.54 mm |
| Mounting Hole Diameter [diameter] | 1.5 mm |
| Mounting Hole Diameter [diameter] | 0.059 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 2.54 mm |
| Socket Depth | 0.1 " |
| Tail Type | No Tail |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.08 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.82 | |||
| 1000 | $ 0.60 | |||
| 5000 | $ 0.52 | |||
| 10000 | $ 0.50 | |||
Description
General part information
8894-0 Series
Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Press-Fit, Hex
