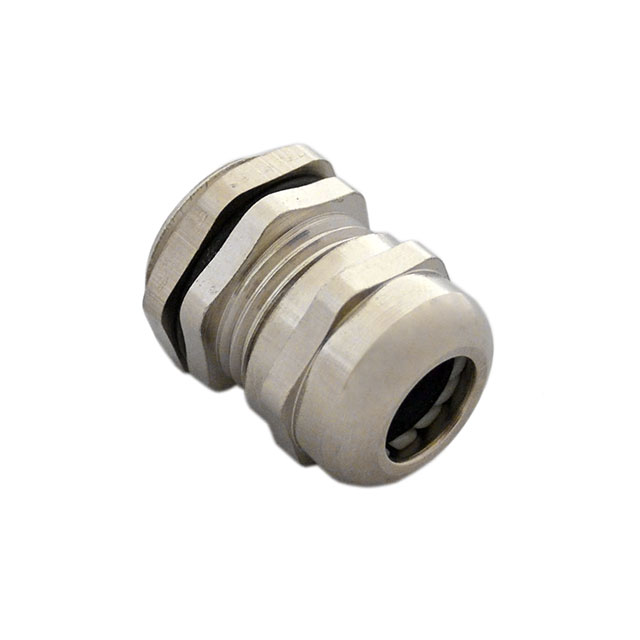

MPG-22311

Active

BUD INDUSTRIES

CABLE GLAND 5.08-9.91MM PG11

Search across all available documentation for this part.

Active

BUD INDUSTRIES

CABLE GLAND 5.08-9.91MM PG11

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPG-22311	MPG-22 Series

Color	Silver	Silver
Includes	Gasket	Gasket
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	9.91 mm	9.91 - 13.97 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.39 in	0.39 - 0.55 in
Outside Cable Diameter (Min) [Min] [diameter]	5.08 mm	5.08 - 9.91 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.2 in	0.2 - 0.39 in
Panel Hole Size	18.5 mm	18.5 mm
Panel Hole Size	0.73 in	0.73 in
Thread Length	0.24 in	0.24 in
Thread Length	6.1 mm	6.1 mm
Thread Size	PG11	PG11, PG16
Type	Cable Gland	Cable Gland

CABLE GLAND 5.08-9.91MM PG11

Part	Thread Size	Includes	Panel Hole Size	Panel Hole Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Length	Thread Length	Type	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
BUD INDUSTRIES MPG-22311	PG11	Gasket	18.5 mm	0.73 in	Brass, Nickel Plated	9.91 mm	0.39 in	100 °C	-20 C	IP68 - Dust Tight, Waterproof	0.24 in	6.1 mm	Cable Gland	Silver	5.08 mm	0.2 in
BUD INDUSTRIES MPG-22316	PG16	Gasket			Brass, Nickel Plated	13.97 mm	0.55 in	100 °C	-20 C	IP68 - Dust Tight, Waterproof			Cable Gland	Silver	9.91 mm	0.39 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG11 Silver
