930-120P-51S
ActiveAmphenol RF

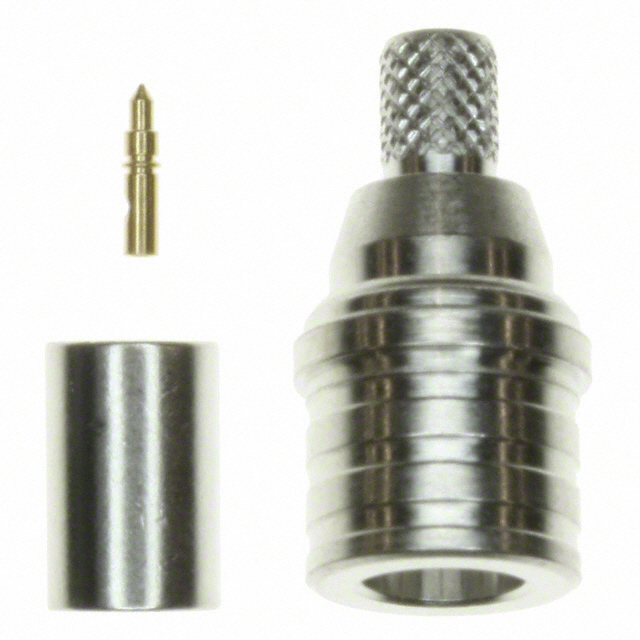

CONN QMA 0HZ TO 6GHZ 50OHM SOLDER ST CABLE MOUNT PL GOLD
Deep-Dive with AI
Search across all available documentation for this part.
930-120P-51S
ActiveAmphenol RF
CONN QMA 0HZ TO 6GHZ 50OHM SOLDER ST CABLE MOUNT PL GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 930-120P-51S |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 480 V |
930-12 Series
| Part | Voltage Rating | Impedance | Connector Type | Frequency - Max [Max] | Mounting Type | Center Contact Material | Housing Color | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Center Contact Plating | Number of Ports | Contact Termination | Dielectric Material | Body Material | Shield Termination | Mating Cycles | Features | Mounting Feature | Includes | Cable Group | Cable Group [Min] | Cable Group [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 6000 MHz | Through Hole Right Angle | Beryllium Copper | Gold | Gold | -40 °C | 80 C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Solder | |||||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Receptacle | 6000 MHz | Beryllium Copper | Silver | White Bronze | -55 °C | 165 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Solder | 500 | Extended Insulation | Bulkhead - Rear Side Nut | |||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Silver | White Bronze | -40 °C | 85 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Crimp | Bulkhead - Front Side Nut | 1 Connector 1 Contact 1 Lockwasher 1 Nut | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | |||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Gold | Gold | -40 °C | 85 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Solder | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | RG-405 Semi Rigid | 0.085 in | 0.086 in | |||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Silver | White Bronze | -40 °C | 85 °C | Snap-On | Gold | 1 | Crimp | Polytetrafluoroethylene (PTFE) | Brass | Crimp | Bulkhead - Front Side Nut | 1 Connector 1 Contact 1 Lockwasher 1 Nut | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | |||||
Amphenol RF | 480 V | 50 Ohms | Male Pin Plug | 6000 MHz | Free Hanging (In-Line) | Brass | Silver | White Bronze | -65 ░C | 165 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Crimp | 500 | 1 Connector 1 Contact 1 Ferrule | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | ||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Gold | Gold | -40 °C | 85 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Solder | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | ||||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Silver | White Bronze | -65 ░C | 165 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Solder | 500 | Bulkhead - Front Side Nut | 1 Connector 1 Nut | |||||
Amphenol RF | 480 V | 50 Ohms | Female Socket Jack | 11 GHz | Beryllium Copper | Silver | White Bronze | -40 °C | 85 °C | Snap-On | Gold | 1 | Solder | Polytetrafluoroethylene (PTFE) | Brass | Crimp | Bulkhead - Front Side Nut | 1 Connector 1 Contact 1 Lockwasher 1 Nut | 188 316 Double Braid M17/152-RD316 RG-179 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.80 | |
| 10 | $ 14.56 | |||
| 25 | $ 13.80 | |||
| 50 | $ 13.60 | |||
| 100 | $ 12.00 | |||
| 300 | $ 11.20 | |||
| 500 | $ 10.96 | |||
Description
General part information
930-12 Series
QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
