826630-2
ActiveTE Connectivity Raychem Cable Protection

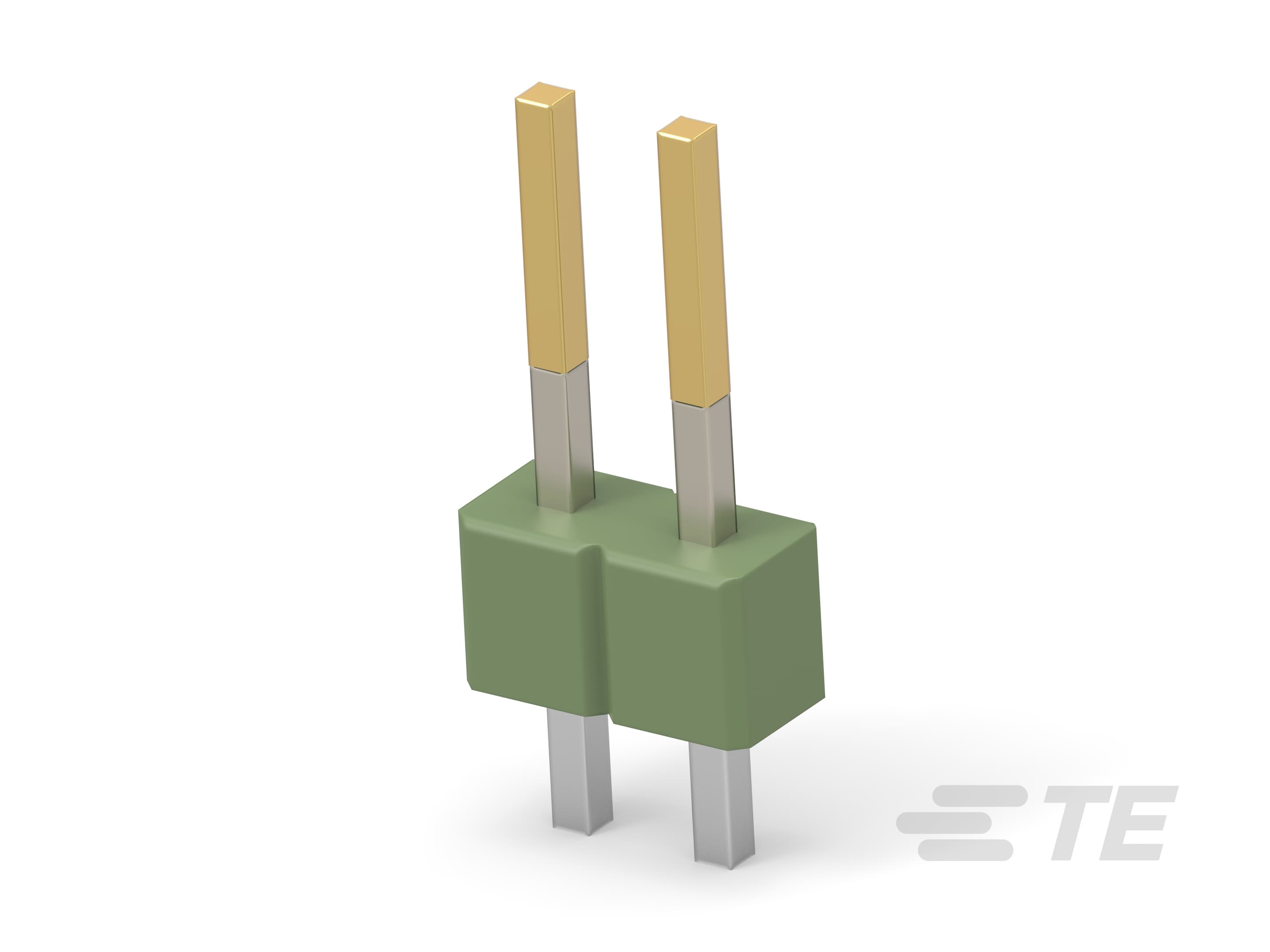

CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
826630-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 826630-2 |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Mating | 6.7 mm |
| Contact Length - Mating | 0.264 in |
| Contact Length - Post | 2.5 mm |
| Contact Length - Post | 0.098 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 12 mm |
| Overall Contact Length | 0.472 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.20 | |||
Description
General part information
826630 Series
Connector Header Through Hole 2 position 0.100" (2.54mm)
