1-102567-0

Active

TE Connectivity AMP Connectors

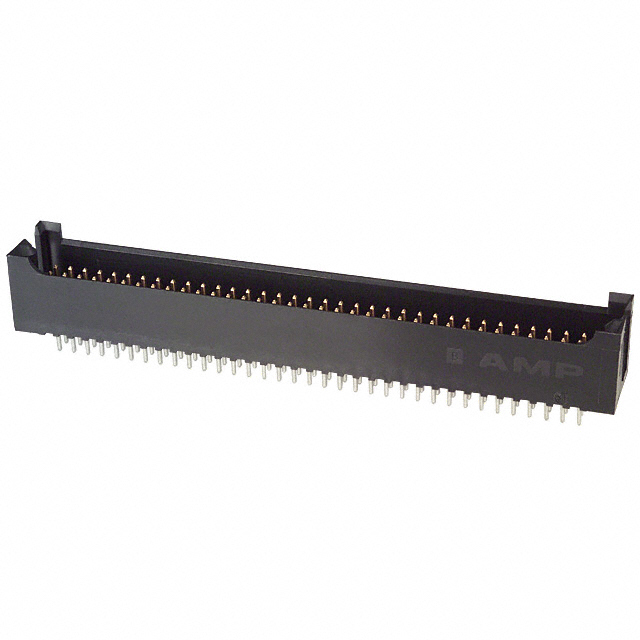

CONN HEADER VERT 70POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-102567-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 70POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-102567-0	102567 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post	0.18 in	0.18 in
Contact Length - Post	4.57 mm	4.57 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.55 in	0.55 in
Insulation Height	13.97 mm	13.97 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	70	12 - 110
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	400	$ 11.35

102567 Series

CONN HEADER VERT 50POS 2.54MM

Part	Number of Positions Loaded	Material Flammability Rating	Shrouding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Mating	Contact Type	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Current Rating (Amps)	Number of Rows	Fastening Type	Contact Finish - Post	Contact Shape	Contact Material	Mounting Type
TE Connectivity AMP Connectors 102567-6	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	50	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 102567-1	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	12	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 102567-4	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	60	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 6-102567-5	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	110 positions	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 5-102567-8	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	80	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 1-102567-0	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	70	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 5-102567-2	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	24	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 1-102567-5	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	110 positions	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 6-102567-3	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	30	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 1-102567-6	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	72	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 6-102567-1	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	20	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 5-102567-3	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	36	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 5-102567-6	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	50	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 102567-9	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	100	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 2-102567-3	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	14	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin-Lead	Square	Copper Alloy	Through Hole
TE Connectivity AMP Connectors 5-102567-1	All	UL94 V-0	Shrouded - 4 Wall	Header	15 µin	0.38 µm	Black	Gold	Male Pin	Solder	12	0.1 in	2.54 mm	2.54 µm	100 µin	0.18 in	4.57 mm	-65 ░C	105 ░C	0.55 in	13.97 mm	2.54 mm	0.1 in	250 VAC	3 A	2	Push-Pull	Tin	Square	Copper Alloy	Through Hole

Description

General part information

102567 Series

Connector Header Through Hole 70 position 0.100" (2.54mm)
