Specification	1K5SMPC15APH

Current - Peak Pulse	70.8 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	175 °C

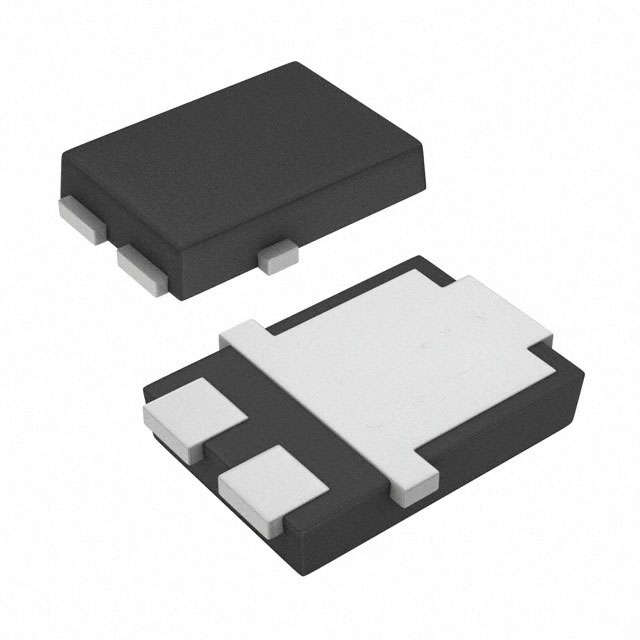

Package / Case	TO-277, 3-PowerDFN
Package Name	SMPC4.6U
Power - Peak Pulse	1500 W
Power Line Protection	No
Qualification	AEC-Q101
Type	Zener
Unidirectional Channels	1
Voltage - Breakdown (Min)	14.3 V
Voltage - Clamping (Max)	21.2 V
Voltage - Reverse Standoff (Typ)	12.8 V

1K5SMPC Series

Part	Package Name	Power Line Protection	Package / Case	Grade	Voltage - Breakdown (Min)	Mounting Type	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Qualification	Unidirectional Channels	Type	Voltage - Clamping (Max)	Current - Peak Pulse	Operating Temperature
Taiwan Semiconductor Corporation 1K5SMPC15APH	SMPC4.6U	No	3-PowerDFN TO-277	Automotive	14.3 V	Surface Mount	12.8 V	1500 W	AEC-Q101	1	Zener	21.2 V	70.8 A	175 °C
