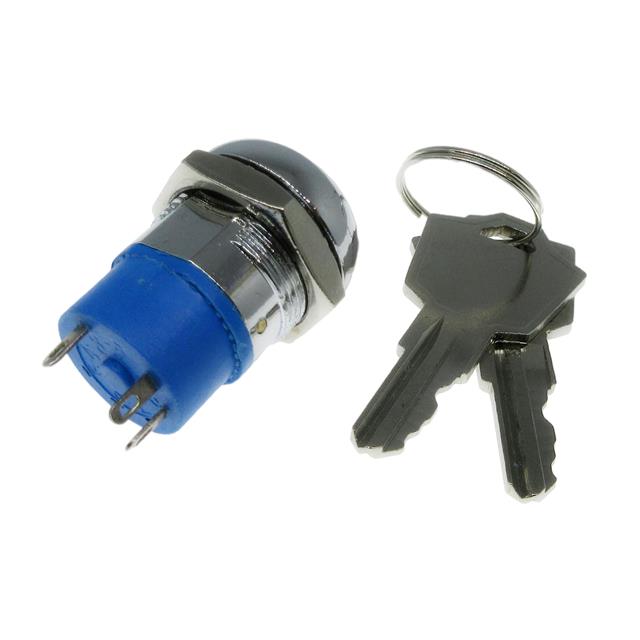

SW-R-K13A-A
ActiveAdam Tech
SWITCH KEYLOCK 2POS SPDT 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SW-R-K13A-A
ActiveAdam Tech
SWITCH KEYLOCK 2POS SPDT 4A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-R-K13A-A |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | SPDT |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 4 A |
| Depth Behind Flange | 27.5 mm |
| Key Removable Positions | All |
| Mechanical Life | 10000 Steps |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.28 | |
| 10 | $ 9.74 | |||
| 25 | $ 9.18 | |||
| 50 | $ 8.78 | |||
| 100 | $ 8.40 | |||
| 300 | $ 7.82 | |||
| 500 | $ 7.57 | |||
| 1000 | $ 7.24 | |||
Description
General part information
SW-R-K13A-A
Keylock Switch 2 Position SPDT 4A (AC/DC) 125 VAC 28 VDC Panel Mount
