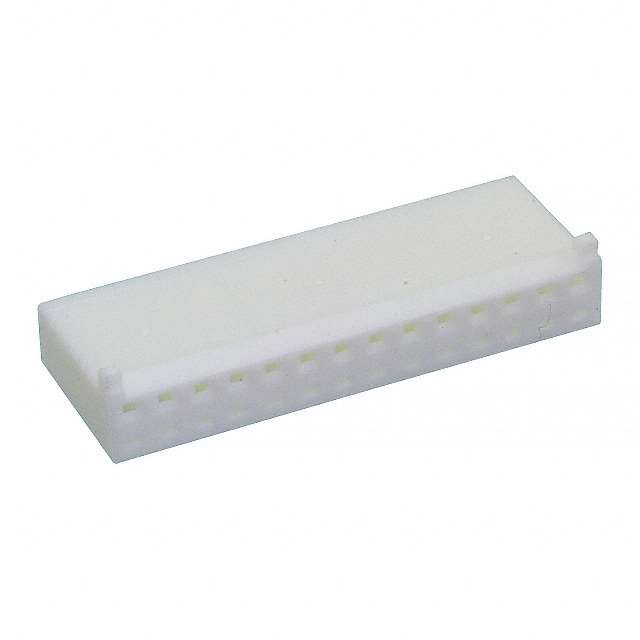

1-1375820-4

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1375820-4

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1375820-4

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

1375820 Series

Part	Fastening Type	Number of Positions	Connector Type	Contact Type	Contact Termination	Color	Note	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
TE Connectivity Raychem Cable Protection 2-1375820-8	Locking Ramp	28	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-1375820-6	Locking Ramp	26	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1375820-4	Locking Ramp	4	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-1375820-4	Locking Ramp	14	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-1375820-0	Locking Ramp	20	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-1375820-2	Locking Ramp	22 positions	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-1375820-7	Locking Ramp	27	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-1375820-2	Locking Ramp	12	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-1375820-3	Locking Ramp	13	Receptacle	Female Socket	Crimp	White	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	2.54 mm	0.1 in	1	105 ░C	-55 °C	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.46
		25	$ 0.46
		50	$ 0.45
		100	$ 0.37
		250	$ 0.35
		500	$ 0.34

Description

General part information

1375820 Series

14 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
