Q-0J04F0003024i

Active

Amphenol Custom Cable

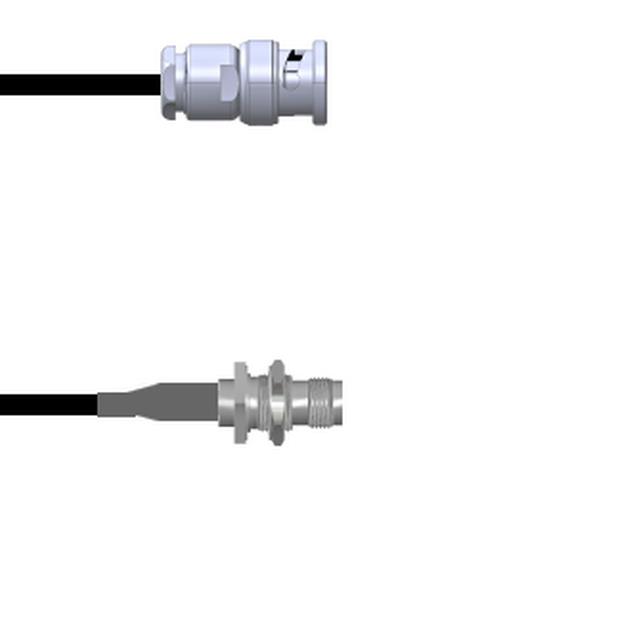

COAX CBL BNC TO TNC 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J04F0003024i

Active

Amphenol Custom Cable

COAX CBL BNC TO TNC 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J04F0003024i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0J04F0 Series

Part	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	Features	1st Connector	Overall Impedance	Color	Length	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Feature	Style	Cable Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0J04F0003002M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black	6.6 ft	78.7 in	2 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F0003003M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black	9.8 '	118.1 in	3 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F0003108i	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black	9 ft	108 in	2.7 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F0003.25M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black				Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174	9.843 "	250 mm
Amphenol Custom Cable Q-0J04F0005001M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Copper	3.3 ft	39.4 in	1 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-316
Amphenol Custom Cable Q-0J04F0003072i	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black	6 ft	72 in	1.8 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F0005009i	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Copper		9 "	228.6 mm	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-316
Amphenol Custom Cable Q-0J04F0003024i	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black		24 "	609.6 mm	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F00032.5M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Black	8.2 '	98.4 in	2.5 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-174
Amphenol Custom Cable Q-0J04F0005002M	TNC Jack	4 GHz	Free Hanging (In-Line)	Shielded	BNC Plug	50 Ohms	Copper	6.6 ft	78.7 in	2 m	Panel Mount	Female	Male	Bulkhead - Front Side Nut	BNC to TNC	RG-316

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 40.71
		25	$ 39.91
		50	$ 39.12
		100	$ 38.32
		250	$ 37.52

Description

General part information

Q-0J04F0 Series

Cable Assembly Coaxial BNC to TNC RG-174 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
