100025286

Active

Telegartner Inc

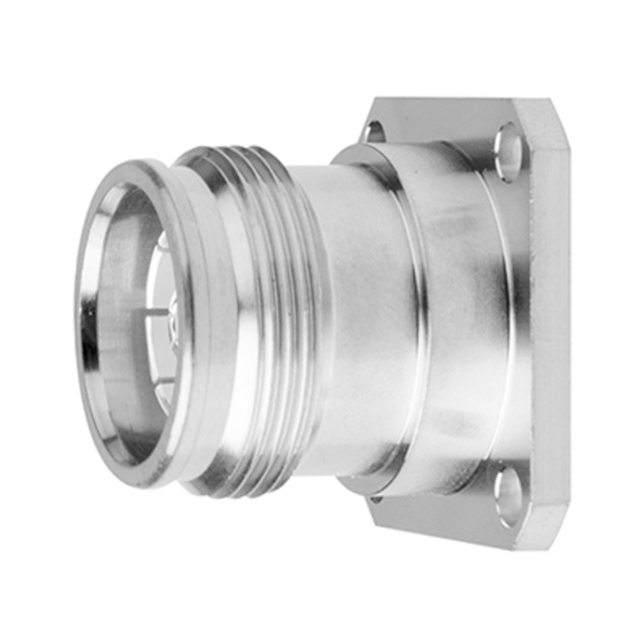

4.3-10 JCK STR FLNG SCR/SCR THR.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025286

Active

Telegartner Inc

4.3-10 JCK STR FLNG SCR/SCR THR.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025286	J01441A0 Series

Body Finish	White Bronze	Silver, White Bronze
Body Material	Copper Alloy	Brass, Copper Alloy
Center Contact Material	Copper Alloy	Copper Alloy, Beryllium Copper
Center Contact Plating	Silver	Silver
Connector Style	4.3/10	4.3/10
Connector Type	Female Socket, Jack	Female Socket, Jack, Receptacle
Contact Termination	Solder	Solder, Crimp, Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof
Mating Cycles	-	500
Mounting Feature	Flange	Bulkhead - Front Side Nut, Flange
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 90 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Shield Termination	Solder	Clamp, Solder
Voltage Rating	-	1000 VDC

J01441A0 Series

4.3-10 STRAIGHT JACK

Part	Mounting Type	Body Material	Housing Color	Body Finish	Center Contact Material	Voltage Rating	Ingress Protection	Connector Style	Frequency - Max [Max]	Number of Ports	Contact Termination	Shield Termination	Connector Type	Center Contact Plating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Dielectric Material	Mounting Feature
Telegartner Inc 100025266	Free Hanging (In-Line)	Brass	Silver	Silver	Copper Alloy	1000 VDC	IP68 - Dust Tight, Waterproof	4.3/10	6000 MHz	1	Crimp, Solder	Clamp	Female Socket, Jack	Silver	50 Ohms	85 °C	-40 °C
Telegartner Inc 100025267	Free Hanging (In-Line)	Brass	Silver	Silver	Copper Alloy	1000 VDC	IP68 - Dust Tight, Waterproof	4.3/10	6000 MHz	1	Crimp, Solder	Clamp	Female Socket, Jack	Silver	50 Ohms	85 °C	-40 °C	500
Telegartner Inc 100025265	Free Hanging (In-Line)	Brass	Silver	Silver	Copper Alloy			4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	90 °C	-55 °C		Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025285		Copper Alloy	Silver	White Bronze	Copper Alloy		IP67 - Dust Tight, Waterproof	4.3/10	6000 MHz	1	Solder Cup	Solder	Female Socket, Jack	Silver	50 Ohms	85 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut
Telegartner Inc 100025286		Copper Alloy	Silver	White Bronze	Copper Alloy			4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	85 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Flange
Telegartner Inc 100025262	Free Hanging (In-Line)	Brass	Silver	Silver	Copper Alloy			4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	90 °C	-55 °C		Polytetrafluoroethylene (PTFE)
Telegartner Inc 100025260		Brass	Silver	Silver	Copper Alloy		IP67 - Dust Tight, Waterproof	4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	90 °C	-55 °C		Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut
Telegartner Inc 100025264		Brass	Silver	Silver	Copper Alloy			4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	90 °C	-55 °C		Polytetrafluoroethylene (PTFE)	Flange
Telegartner Inc 100025269		Brass	Silver	Silver	Beryllium Copper		IP67 - Dust Tight, Waterproof	4.3/10		1	Solder		Female Socket, Jack	Silver	50 Ohms	85 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Flange
Telegartner Inc 100025263		Brass	Silver	Silver	Copper Alloy		IP67 - Dust Tight, Waterproof	4.3/10	6000 MHz	1	Solder	Solder	Female Socket, Jack	Silver	50 Ohms	90 °C	-55 °C		Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.20
		10	$ 17.65
		25	$ 16.32
		50	$ 14.51

Description

General part information

J01441A0 Series

4.3/10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
