8459 060100

Active

Belden Inc.

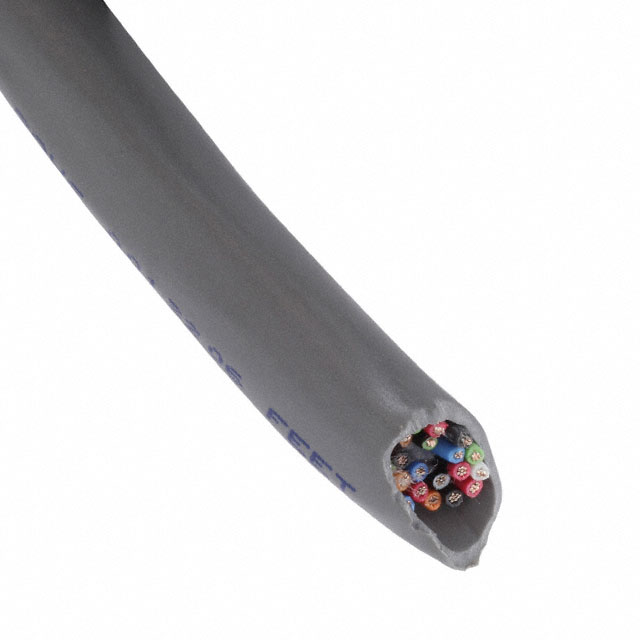

CABLE 25COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 25COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8459 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	9.83 mm
Jacket (Insulation) Diameter [diameter]	0.387 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length [x]	Length [x]	Wire Gauge	Ratings	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Conductor Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length
Belden Inc. 8459 060500	25	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	22 AWG	UL Style 2576	Audio Control Instrumentation	7	30 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	-20 C	80 C	9.83 mm	0.387 "	Chrome
Belden Inc. 8459 0605000	25	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)			22 AWG	UL Style 2576	Audio Control Instrumentation	7	30 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	-20 C	80 C	9.83 mm	0.387 "	Chrome
Belden Inc. 8459 060100	25	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	22 AWG	UL Style 2576	Audio Control Instrumentation	7	30 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	-20 C	80 C	9.83 mm	0.387 "	Chrome
Belden Inc. 8459 0601000	25	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)			22 AWG	UL Style 2576	Audio Control Instrumentation	7	30 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	-20 C	80 C	9.83 mm	0.387 "	Chrome	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Conductor Multi-Conductor Cable Chrome 22 AWG 100.0' (30.5m)
