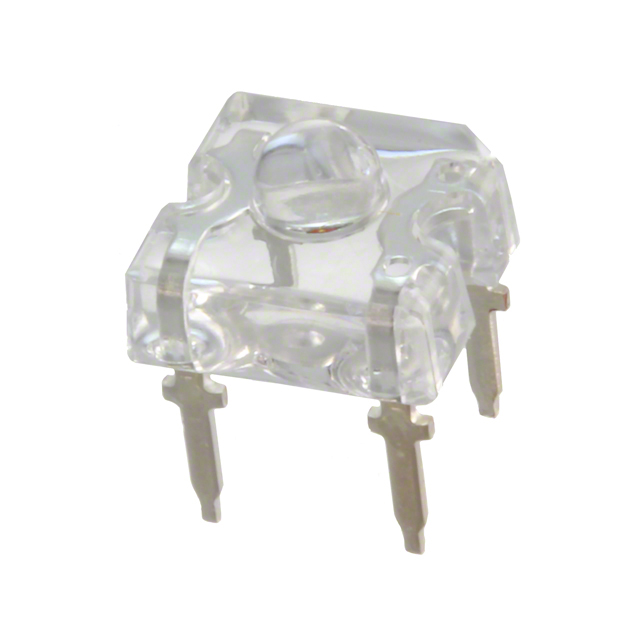

CP41B-WES-CM0P0244

Active

Cree LED

LED UNI-COLOR WHITE 4-PIN TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP41B-WES-CM0P0244

Active

Cree LED

LED UNI-COLOR WHITE 4-PIN TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP41B-WES-CM0P0244

Color	Cool, White
Configuration	Standard
Current - Test	30 mA
Height (Max) [Max]	6.55 mm
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	5200 mcd
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	7.6 mm
Supplier Device Package	P4
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength - Dominant [custom]	9000 K

CP41B Series

Part	Current - Test	Viewing Angle	Lens Transparency	Configuration	Height (Max) [Max]	Lens Size [diameter]	Supplier Device Package	Mounting Type	Wavelength - Dominant	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Color	Height (Max) [Max] [z]	Lens Color	Viewing Angle [custom]	Wavelength - Dominant [custom]	Millicandela Rating
Cree LED CP41B-RFS-CN0P0EE4	70 mA	70 °	Clear	Standard	6.55 mm	3 mm	P4	Through Hole	628 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Red
Cree LED CP41B-AHS-CN0Q0354	70 mA	100 °	Clear	Standard		3 mm	P4	Through Hole	591 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Amber	6.15 mm	Amber
Cree LED CP41B-WGS-CM0P0134	30 mA		Clear	Standard		3 mm	P4	Through Hole		4-DIP	0.2 in	0.2 in	3.6 V	Round with Domed Top	7.6 mm	7.6 mm	Cool White	5.94 mm		90 °	9000 K
Cree LED CP41B-RFS-CM0P0EE4	70 mA	70 °	Clear	Standard	6.55 mm	3 mm	P4	Through Hole	628 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Red
Cree LED CP41B-ADS-CL0P0264	70 mA		Clear	Standard		3 mm	P4	Through Hole	591 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Amber	6.85 mm	Amber	40 °
Cree LED CP41B-WGS-CL0P0134	30 mA		Clear	Standard		3 mm	P4	Through Hole		4-DIP	0.2 in	0.2 in	3.6 V	Round with Domed Top	7.6 mm	7.6 mm	Cool White	5.94 mm		90 °	9000 K
Cree LED CP41B-RDS-CL0P0EE4	70 mA		Clear	Standard		3 mm	P4	Through Hole	628 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Red	6.85 mm		40 °
Cree LED CP41B-WES-CM0P0244	30 mA	60 °	Clear	Standard	6.55 mm	3 mm	P4	Through Hole		4-DIP	0.2 in	0.2 in	3.6 V	Round with Domed Top	7.6 mm	7.6 mm	Cool White				9000 K	5200 mcd
Cree LED CP41B-WGS-CM0P0244	30 mA		Clear	Standard		3 mm	P4	Through Hole		4-DIP	0.2 in	0.2 in	3.6 V	Round with Domed Top	7.6 mm	7.6 mm	Cool White	5.94 mm		90 °	9000 K
Cree LED CP41B-ADS-CM0P0454	70 mA		Clear	Standard		3 mm	P4	Through Hole	591 nm	4-DIP	0.2 in	0.2 in	2.5 V	Round with Domed Top	7.6 mm	7.6 mm	Amber	6.85 mm	Amber	40 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	60	$ 0.23
Digikey	Tube	1	$ 0.46
		10	$ 0.43
		100	$ 0.40
		1000	$ 0.36

Description

General part information

CP41B Series

White, Cool 9000K LED Indication - Discrete 3.6V 4-DIP (0.200", 5.08mm)
