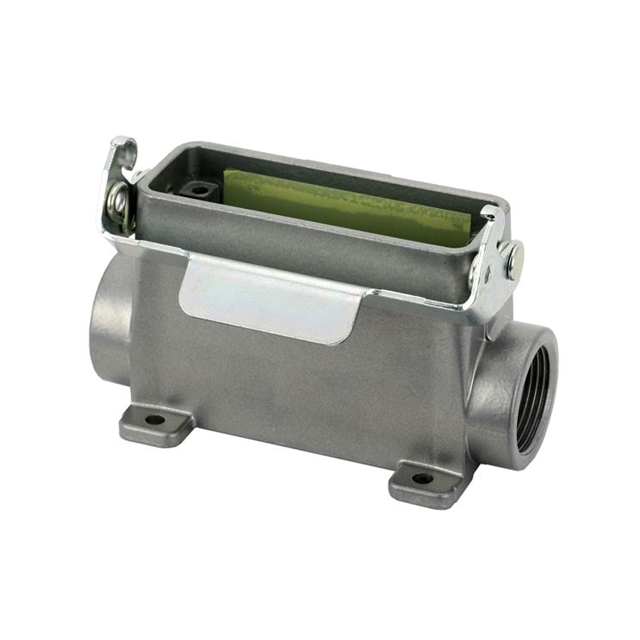

C14610F0255002

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0255002

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Size / Dimension [x]	101 mm
Size / Dimension [x]	3.976 "
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Style	Side Entry
Thread Size	PG21

Part	Ingress Protection	Lock Location	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Size	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C14610F0250032	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Bottom Entry	29.5 mm	96 mm	1.161 "	26 mm	3.78 "	1.024 in	Base - Panel Mount	A16	Aluminum Alloy Die Cast	100 °C	-40 °C
Amphenol Tuchel Industrial C14610F0255002	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Side Entry		101 mm	1.969 in		3.976 "	2.244 "	Base - Box Mount	A16	Aluminum Alloy Die Cast	100 °C	-40 °C	PG21	57 mm	50 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 25.45

General part information

Base - Box Mount Connector Side Entry PG21 A16 IP65 - Dust Tight, Water Resistant
