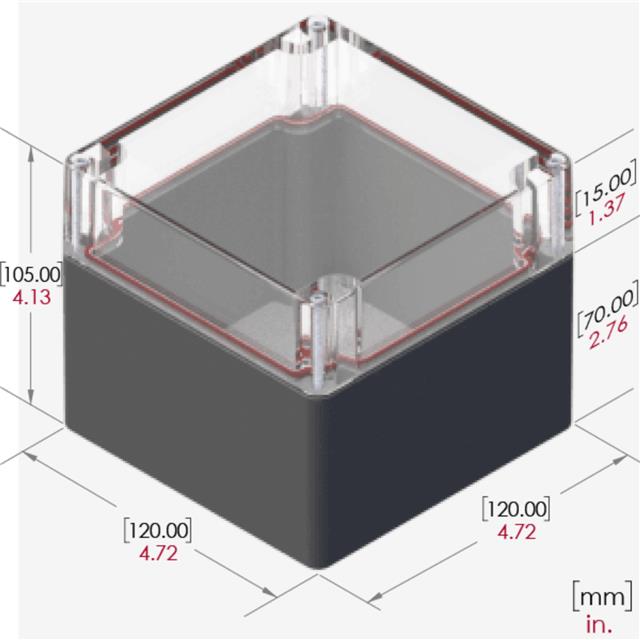

Specification	RB55P14C28G

Area (L x W)	22.3 in²
Color	Clear Cover/Door, Gray
Container Type	Box
Design	Cover Included
Height	4.13 in
Material	Polycarbonate (PC), Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	NEMA 4, IP67
Thickness	0.12 in

RB55P14C Series

Part	Material	Ratings	Material Flammability Rating	Design	Color	Area (L x W)	Thickness	Container Type	Height
Serpac RB55P14C10C	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear	22.3 in²	0.12 in	Box	2.38 in
Serpac RB55P14C16G	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear Cover/Door Gray	22.3 in²	0.12 in	Box	2.95 in
Serpac RB55P14C28G	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear Cover/Door Gray	22.3 in²	0.12 in	Box	4.13 in
Serpac RB55P14C10G	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear Cover/Door Gray	22.3 in²	0.12 in	Box	2.38 in
Serpac RB55P14C16C	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear	22.3 in²	0.12 in	Box	2.95 in
Serpac RB55P14C16B	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Black Clear Cover/Door	22.3 in²	0.12 in	Box	2.95 in
Serpac RB55P14C28C	Plastic Polycarbonate Polycarbonate (PC)	IP67 NEMA 4	UL94 V-0	Cover Included	Clear	22.3 in²	0.12 in	Box	4.13 in
