R161322000

Active

Radiall USA, Inc.

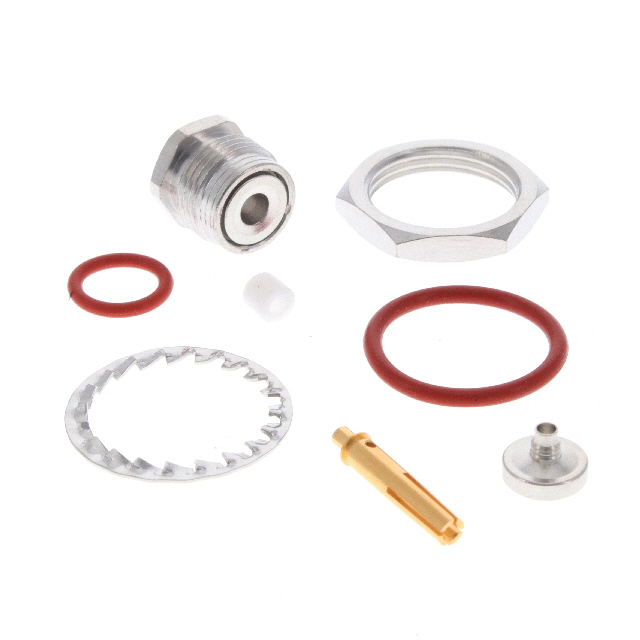

N F STR BHDP CL 2.6/50+75 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N F STR BHDP CL 2.6/50+75 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R161322000

Body Material	Brass
Cable Group	RD-316, RG-174
Cable Group	316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Contact, 1 Spacer, 1 Lockwasher, 1 Nut, 1 Connector, 2 Gaskets, 1 Clamp Nut, 1 Braid Clamp
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Center Contact Material	Shield Termination	Number of Ports	Connector Type	Ingress Protection	Dielectric Material	Connector Style	Cable Group	Cable Group	Body Material	Mounting Feature	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Center Contact Plating	Contact Termination	Includes	Impedance	Mating Cycles
Radiall USA, Inc. R161322000	Beryllium Copper	Clamp	1	Female Socket Jack	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	N Type	RD-316 RG-174	316	Brass	Bulkhead - Front Side Nut	11 GHz	155 °C	-55 °C	250 VDC	Gold	Solder	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Lockwasher 1 Nut 1 Spacer 2 Gaskets	50 Ohms	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
