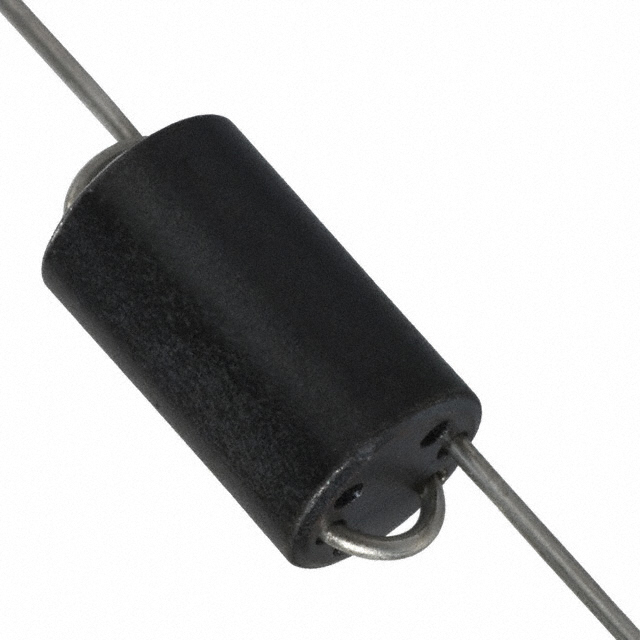

FB20019-4B-RC
ActiveBourns Inc.
FERRITE BEADS WIDE BAND CHOKE 450OHM 25% 100MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FB20019-4B-RC
ActiveBourns Inc.
FERRITE BEADS WIDE BAND CHOKE 450OHM 25% 100MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FB20019-4B-RC |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| Impedance @ Frequency | 450 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Package / Case | Axial |
| Size / Dimension [diameter] | 0.236 in |
| Size / Dimension [diameter] | 5.99 mm |
| Size / Dimension [z] | 0.394 in |
| Size / Dimension [z] | 10.01 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FB20019 Series
450 Ohms @ 100 MHz 1 Ferrite Bead Axial 5A
