776540-1

Active

TE Connectivity AMP Connectors

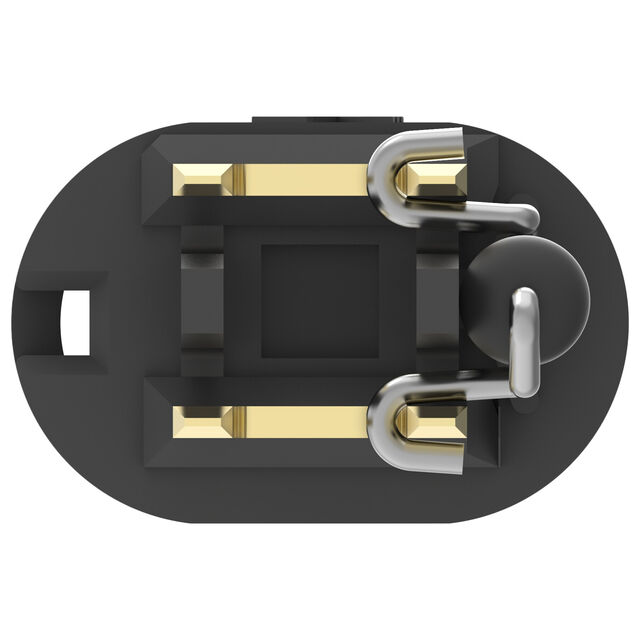

CONN HEADER VERT 2POS 6MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 6MM

Technical Specifications

Parameters and characteristics for this part

Specification	776540-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.325 in
Contact Length - Post	8.25 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.236 in
Pitch - Mating	6 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER VERT 2POS 6MM

Part	Mounting Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Contact Material	Termination	Style	Fastening Type	Number of Rows	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Number of Positions	Connector Type	Contact Shape	Contact Type	Insulation Height	Insulation Height
TE Connectivity AMP Connectors 776540-1	Through Hole	Gold	0.325 in	8.25 mm	Shrouded - 4 Wall	Copper Alloy	Solder	Board to Cable/Wire	Latch Holder	1	Polyamide (PA66), Nylon 6/6, Glass Filled	0.236 in	6 mm	Black	All	2	Header	Square	Male Pin	13.5 mm	0.531 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 2 position 0.236" (6.00mm)
