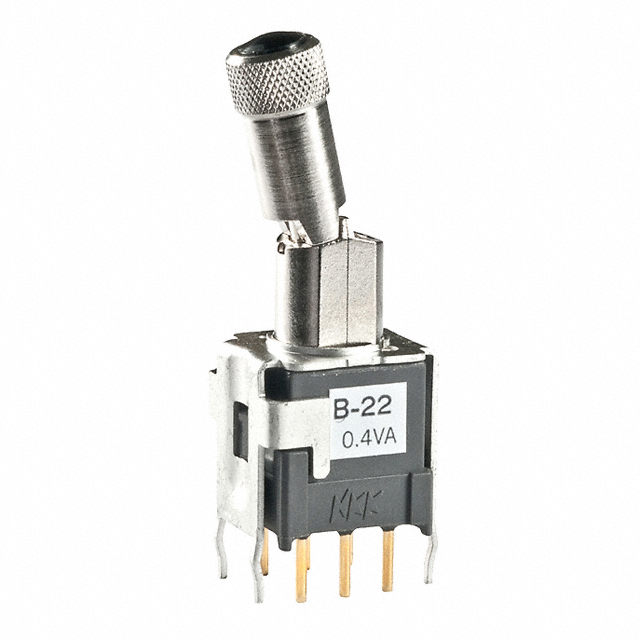

B22LB

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Features	Actuator Length [x]	Voltage Rating - DC	Electrical Life	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread	Actuator Type	Illumination	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Material
NKK Switches B22LH	Epoxy Sealed Terminals	12.5 mm	28 V	50000 Cycles	Through Hole Right Angle	0.4 VA	28 V	Unthreaded	Locking Lever	Non-Illuminated	DPDT	On-On	-30 ░C	85 °C	PC Pin	Brass Nickel Plated
NKK Switches B22LB	Epoxy Sealed Terminals	12.5 mm	28 V	50000 Cycles	Through Hole	0.4 VA	28 V	Unthreaded	Locking Lever	Non-Illuminated	DPDT	On-On	-30 ░C	85 °C	PC Pin	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole
