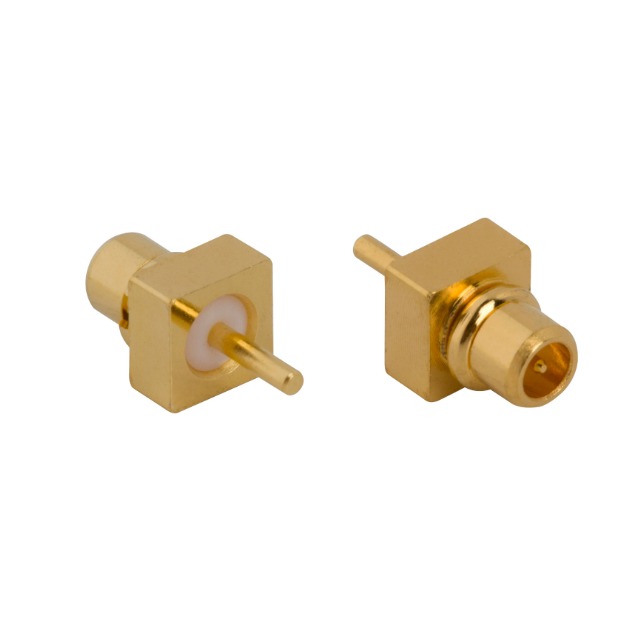

262114-10

Active

Amphenol RF

CONN MMCX PLUG STR 50OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN MMCX PLUG STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	262114-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

Part	Contact Termination	Center Contact Material	Number of Ports	Fastening Type	Connector Style	Body Finish	Body Material	Housing Color	Mounting Type	Dielectric Material	Impedance	Connector Type	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Mating Cycles
Amphenol RF 262114-10	Solder	Brass	1	Snap-On	MMCX	Gold	Brass	Gold	Through Hole	Polytetrafluoroethylene (PTFE)	50 Ohms	Male Pin Plug	6000 MHz	Gold	Solder	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.72

General part information

MMCX Connector Plug, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
