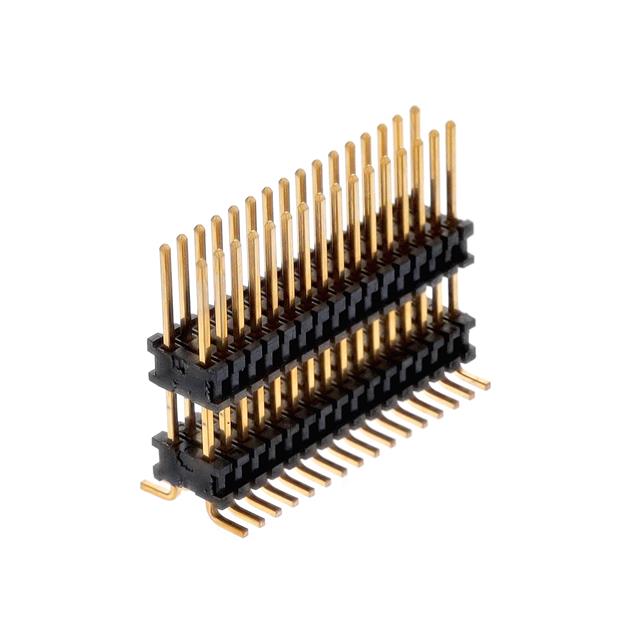

HDWM-16-59-G-D-384-SM-P

Active

Samtec Inc.

VERTICAL WELDING GOLD 32P 1.27MM DOUBLE ROW BLACK 2.54MM SMD,P=1.27MM PIN HEADERS ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

VERTICAL WELDING GOLD 32P 1.27MM DOUBLE ROW BLACK 2.54MM SMD,P=1.27MM PIN HEADERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	HDWM-16-59-G-D-384-SM-P

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.849 in
Length - Overall Pin [x]	21.565 mm
Length - Post (Mating) [x]	0.465 in
Length - Post (Mating) [x]	11.811 mm
Length - Stack Height [z]	9.754 mm
Length - Stack Height [z]	0.384 in
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination	Color	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HDWM-16-59-G-D-420-SM-P	Surface Mount	0.42 in	10.668 mm	Gold	0.465 in	11.811 mm	2	0.1 in	2.54 mm	0.25 Ám	10 Áin	Solder	Black	0.05 in	1.27 mm
Samtec Inc. HDWM-16-59-G-D-400-SM	Surface Mount	0.4 in	10.16 mm	Gold	0.465 in	11.811 mm	2	0.1 in	2.54 mm	0.25 Ám	10 Áin	Solder	Black	0.05 in	1.27 mm	21.971 mm	0.865 in
Samtec Inc. HDWM-16-59-G-D-384-SM-P	Surface Mount			Gold	0.465 in	11.811 mm	2	0.1 in	2.54 mm	0.25 Ám	10 Áin	Solder	Black	0.05 in	1.27 mm	21.565 mm	0.849 in	9.754 mm	0.384 in
