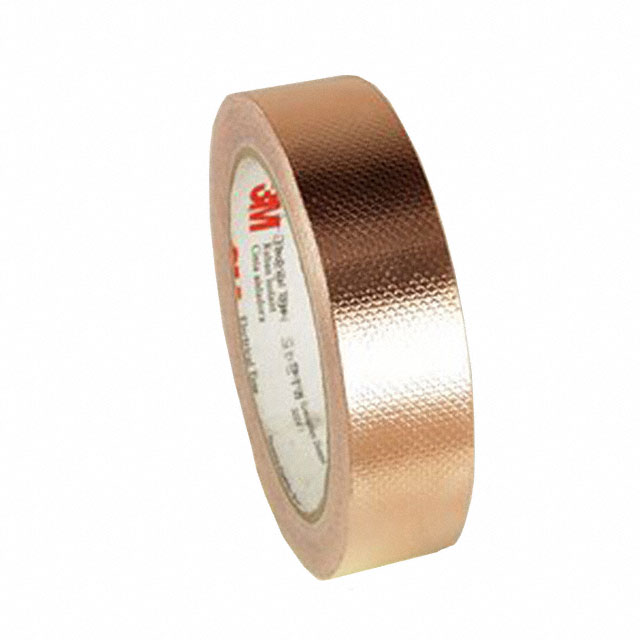

1194-3/4"X36YD

Active

RF EMI SHLDING TAPE 36YDSX0.75"

Search across all available documentation for this part.

Active

RF EMI SHLDING TAPE 36YDSX0.75"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1194-3/4"X36YD	1194 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive, Acrylic
Backing, Carrier	-	Copper Foil
Color	-	Natural
Length	108.005 ft	10 - 108.005 ft
Length	32.92 m	32.9 - 254 m
Length	-	36 yd
Material	Copper Foil	Copper Foil
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	-	Copper Foil
Thickness - Backing, Carrier	-	0.0014 in
Thickness - Backing, Carrier	-	1.4 mils
Thickness - Backing, Carrier	-	0.035 mm
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.07 mm	0.07 mm
Type	Shielding Tape	Shielding Tape
Usage	-	EMI Shielding
Width	0.75 in	0.25 - 7.7 in
Width	19.1 mm	6.35 - 195 mm
Width	-	0.47 - 6 in
Width	-	12 - 152.4 mm
Width	-	107.95 mm
Width	-	1 1/2

RF EMI SHLDING TAPE 36YDSX0.25"

Part	Adhesive	Material	Thickness - Overall	Thickness - Overall	Width	Width	Length	Length	Type	Length	Shelf Life	Usage	Backing, Carrier	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Tape Type	Width [x]	Width [x]	Width	Width
3M 1194-1/4"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	0.25 in	6.35 mm	108.005 ft	32.92 m	Shielding Tape
3M 1194 .6"X36YD	Acrylic						108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil	6 in	152.4 mm
3M 1194 12MMX33MMC19	Acrylic						108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil	0.47 in	12 mm
3M 1194-1/2"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm			108.005 ft	32.92 m	Shielding Tape
3M 1194 25MMX33MMC9	Acrylic				0.98 "	25 mm	108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil
3M 1194 7.7"X10"	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	7.7 in	195 mm	10 in	254 mm	Shielding Tape
3M 1194-3/4"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	0.75 in	19.1 mm	108.005 ft	32.92 m	Shielding Tape		60 Months			Date of Manufacture
3M 1194 4.25"X36YD	Acrylic				4.25 in		108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil			107.95 mm
3M 1194 1.5"X36YD	Acrylic				1.5 "	38.1 mm	108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil				1 1/2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Tape 1194 Copper Foil Non-Conductive, Single Sided 0.750" (19.10mm) X 108.005' (32.92m) X 0.003" (0.07mm)
