RA1-2A-DC-2-B

Active

Switch Components

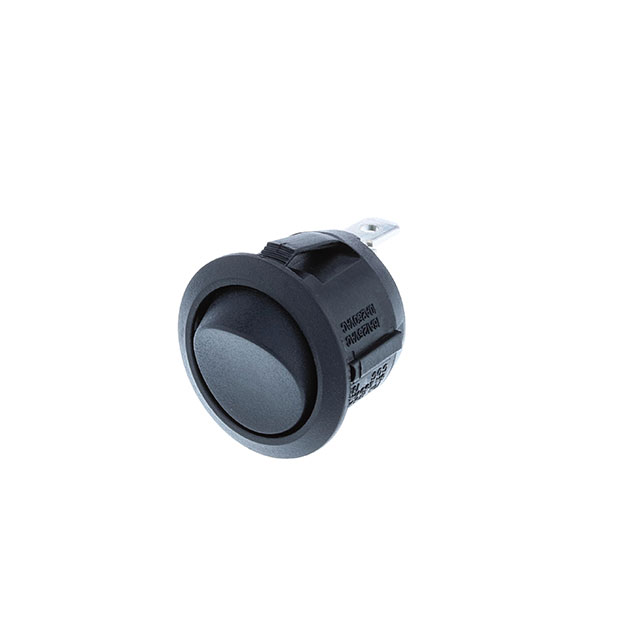

SWITCH ROCKER DPST 10A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER DPST 10A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16 (AC), 10 (DC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RA1-2A-DC-2-B	RA1-2A Series

Actuator Marking	No Marking	Vertical, ON OFF, No Marking, O -
Actuator Type	Round	Round
Approval Agency	cURus, ENEC	cURus, ENEC
Circuit	DPST	DPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	16 A, 10 A	10 - 16 A
Electrical Life	6000 Cycles	6000 Cycles
Ingress Protection	-	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 - -20 C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

VAC ROUND, DPST OFF-ON, PRINT

Part	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Color - Actuator/Cap	Actuator Marking	Approval Agency	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Electrical Life	Mechanical Life
Switch Components RA1-2A-AC-2-B-2	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-20 C	10 A	DPST	Round	20.2 mm	IP40	Black	ON OFF, Vertical	cURus, ENEC	On-Off
Switch Components RA1-2A-DC-2-B-2	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	ON OFF, Vertical	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
Switch Components RA1-2A-DC-2-B	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	No Marking	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
Switch Components RA1-2A-DC-2-B-1	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	85 °C	-25 °C	10 A, 16 A	DPST	Round	20.2 mm		Black	O -	cURus, ENEC	On-Off	28 V	125 V	6000 Cycles	10000 Steps
