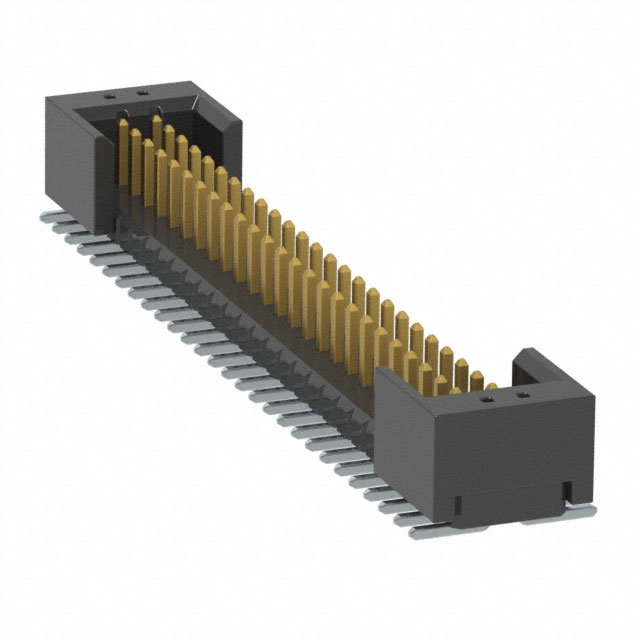

FTM-124-02-F-DV-S

Active

Samtec Inc.

CONN HEADER SMD 48POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTM-124-02-F-DV-S

Active

Samtec Inc.

CONN HEADER SMD 48POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-124-02-F-DV-S

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTM-124 Series

Part	Contact Shape	Contact Material	Features	Number of Positions	Current Rating (Amps)	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Mounting Type	Termination	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTM-124-02-F-DV-SA	Square	Phosphor Bronze	Board Guide End Shrouds	48	2.8 A per Contact	Unshrouded	1.9 mm	0.075 in	Surface Mount	Solder	All	Gold	Tin	Male Pin	Black	0.039 in	1 mm	2	3 µin	0.076 µm	0.039 "	1 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	0.038 in	0.97 mm	-55 °C	125 °C	Push-Pull
Samtec Inc. FTM-124-02-F-DV	Square	Phosphor Bronze		48	2.8 A per Contact	Unshrouded	1.9 mm	0.075 in	Surface Mount	Solder	All	Gold	Tin	Male Pin	Black	0.039 in	1 mm	2	3 µin	0.076 µm	0.039 "	1 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	0.038 in	0.97 mm	-55 °C	125 °C	Push-Pull
Samtec Inc. FTM-124-02-F-DV-S	Square	Phosphor Bronze	End Shrouds	48	2.8 A per Contact	Unshrouded	1.9 mm	0.075 in	Surface Mount	Solder	All	Gold	Tin	Male Pin	Black	0.039 in	1 mm	2	3 µin	0.076 µm	0.039 "	1 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	0.038 in	0.97 mm	-55 °C	125 °C	Push-Pull
Samtec Inc. FTM-124-03-LM-DV-SA-P	Square	Phosphor Bronze		48	2.8 A per Contact	Unshrouded			Surface Mount	Solder	All	Gold	Tin	Male Pin	Black	0.039 in	1 mm	2			0.039 "	1 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	0.038 in	0.97 mm	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTM-124-03-L-DV-SA	Square	Phosphor Bronze	Board Guide End Shrouds	48	2.8 A per Contact	Unshrouded			Surface Mount	Solder	All	Gold	Tin	Male Pin	Black	0.039 in	1 mm	2	10 çin	0.25 çm	0.039 "	1 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	0.038 in	0.97 mm	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 8.05

Description

General part information

FTM-124 Series

Connector Header Surface Mount 48 position 0.039" (1.00mm)
