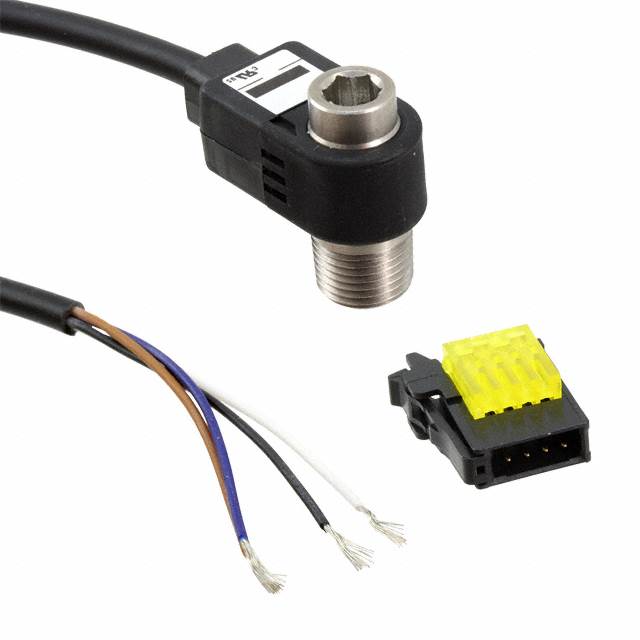

DPH-102-C5
ActivePanasonic Industrial Automation Sales
SENSOR PRESSURE 1MPA GAUGE
Deep-Dive with AI
Search across all available documentation for this part.
DPH-102-C5
ActivePanasonic Industrial Automation Sales
SENSOR PRESSURE 1MPA GAUGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DPH-102-C5 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Industrial Automation |
| Maximum Pressure [Max] | 1500 kPa |
| Maximum Pressure [Max] | 217.56 PSI |
| Operating Pressure | 10 bar |
| Operating Pressure | 145.04 PSI |
| Output [Max] | 5 V |
| Output [Min] | 1 V |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Port Size [custom] | M5 |
| Port Size [custom] | 3.18 mm |
| Port Size [custom] | 1/8" |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.00 | |
| 10 | $ 77.27 | |||
Description
General part information
DPH-102 Series
SENSOR PRESSURE 1MPA GAUGE
Documents
Technical documentation and resources
No documents available
