87233-3
ActiveTE Connectivity AMP Connectors

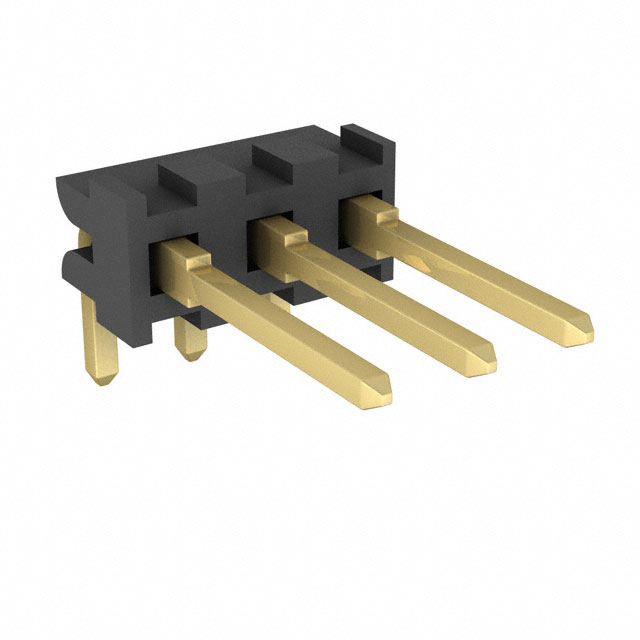

CONN HEADER R/A 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87233-3
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87233-3 | 87233 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 3.5 mm | 3.5 mm |
| Insulation Height | 0.138 in | 0.138 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 1 - 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87233 Series
CONN HEADER R/A 15POS 2.54MM
| Part | Number of Rows | Style | Number of Positions Loaded | Contact Finish - Mating | Contact Type | Termination | Connector Type | Contact Material | Contact Shape | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Material Flammability Rating | Number of Positions | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Mounting Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-87233-5 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 15 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 87233-3 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm | |
TE Connectivity AMP Connectors 87233-4 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 4 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 87233-2 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 2 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 2-87233-0 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 20 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 1-87233-0 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 10 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 87233-1 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 1 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm | ||
TE Connectivity AMP Connectors 87233-5 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm | |
TE Connectivity AMP Connectors 1-87233-1 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 11 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
TE Connectivity AMP Connectors 87233-8 | 1 | Board to Board, Cable | All | Gold | Male Pin | Solder | Header | Phosphor Bronze | Square | Thermoplastic | 0.11 in | 2.79 mm | UL94 V-0 | 8 | Push-Pull | -65 ░C | 105 ░C | Unshrouded | Gold | 3 A | 0.1 in | 2.54 mm | Flash | Through Hole, Right Angle | Black | 15 µin | 0.38 µm | 3.5 mm | 0.138 in | 0.318 " | 8.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.66 | |
| 10 | $ 1.48 | |||
| 100 | $ 1.34 | |||
| 500 | $ 1.32 | |||
Description
General part information
87233 Series
Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
