87233-4

Active

TE Connectivity AMP Connectors

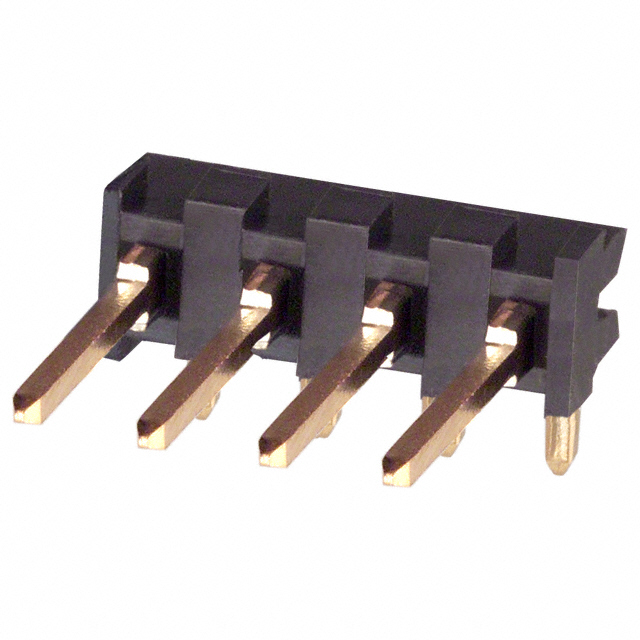

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87233-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 1.61

Description

General part information

87233 Series

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87233-4	87233 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	3.5 mm	3.5 mm
Insulation Height	0.138 in	0.138 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	1 - 40
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87233 Series

CONN HEADER R/A 15POS 2.54MM

Part	Number of Rows	Style	Number of Positions Loaded	Contact Finish - Mating	Contact Type	Termination	Connector Type	Contact Material	Contact Shape	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]
TE Connectivity AMP Connectors 1-87233-5	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	15	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-3	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0		Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-4	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	4	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-2	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	2	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 2-87233-0	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	20	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 1-87233-0	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	10	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-1	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	1	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A			Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-5	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0		Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 1-87233-1	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	11	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
TE Connectivity AMP Connectors 87233-8	1	Board to Board, Cable	All	Gold	Male Pin	Solder	Header	Phosphor Bronze	Square	Thermoplastic	0.11 in	2.79 mm	UL94 V-0	8	Push-Pull	-65 ░C	105 ░C	Unshrouded	Gold	3 A	0.1 in	2.54 mm	Flash	Through Hole, Right Angle	Black	15 µin	0.38 µm	3.5 mm	0.138 in	0.318 "	8.08 mm
