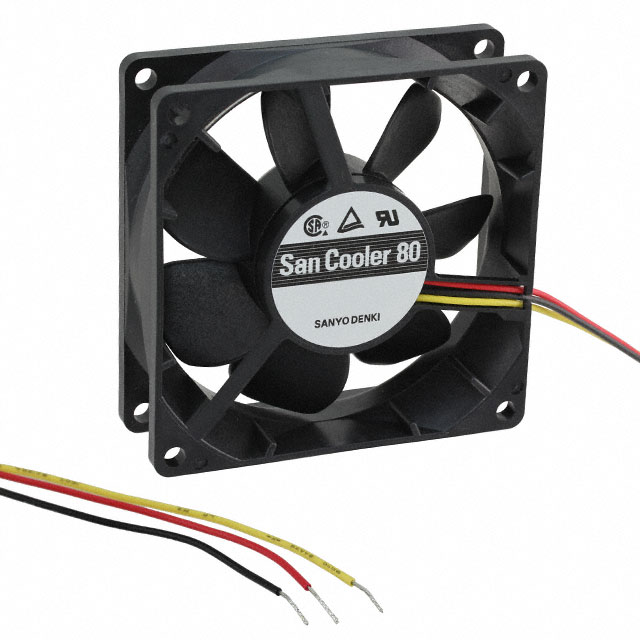

Specification	9A0812G4011

Air Flow	53 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.38 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	40 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	4.56 W
RPM	4500 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.323 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	6 VDC
Weight	0.199 lb
Width	25 mm

9A0812 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Part	RPM	Static Pressure	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Width	Weight	Air Flow	Bearing Type	Noise	Operating Temperature (Min)	Operating Temperature (Max)	Fan Type	Power (Watts)	Voltage - Rated	Features	Approval Agency	Termination Leads Count	Termination Type	Termination	Lifetime	Material - Blade	Material - Frame	Current Rating	Voltage Range (Max)	Voltage Range (Min)
Sanyo Denki America Inc. 9A0812F4D011	2600 RPM	0.114 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	32.5 CFM	Ball	26 dB	-4 °F	158 °F	Tubeaxial	1.32 W	12 VAC	Locked Rotor Sensor	CSA TUV UL	3	Wire Leads	3 Wire Leads	40000 Hrs	Plastic	Plastic	110 mA	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812G4011	4500 RPM	0.323 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	53 CFM	Ball	40 dB	-20 °C	60 °C	Tubeaxial	4.56 W	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	3	Wire Leads	3 Wire Leads	30000 Hrs	Plastic	Plastic	0.38 A	13.2 VDC	6 VDC
Sanyo Denki America Inc. 9A0812H402	2900 RPM	0.142 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	36.4 CFM	Ball	29 dB	-4 °F	158 °F	Tubeaxial	1.56 W	12 VAC	Locked Rotor Protection	CSA TUV UL	2 leads	Wire Leads	2 Wire Leads	40000 Hrs	Plastic	Plastic	0.13 A	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812L4021	1850 RPM	0.059 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	23 CFM	Ball	20 dB	-4 °F	158 °F	Tubeaxial	720 mW	12 VAC	Locked Rotor Protection	CSA TUV UL	2 leads	Wire Leads	2 Wire Leads	40000 Hrs	Plastic	Plastic	60 mA	13.8 VDC	7 V
Sanyo Denki America Inc. 9A0812G4D01	4500 RPM	0.323 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	53 CFM	Ball	40 dB	-20 °C	60 °C	Tubeaxial	4.56 W	12 VAC	Locked Rotor Sensor	CSA TUV UL	3	Wire Leads	3 Wire Leads	30000 Hrs	Plastic	Plastic	0.38 A	13.2 VDC	6 VDC
Sanyo Denki America Inc. 9A0812H4D011	2900 RPM	0.142 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	36.4 CFM	Ball	29 dB	-4 °F	158 °F	Tubeaxial	1.56 W	12 VAC	Locked Rotor Sensor	CSA TUV UL	3	Wire Leads	3 Wire Leads	40000 Hrs	Plastic	Plastic	0.13 A	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812M4D011	2350 RPM	0.09 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	29.3 CFM	Ball	23 dB	-4 °F	158 °F	Tubeaxial	1.08 W	12 VAC	Locked Rotor Sensor	CSA TUV UL	3	Wire Leads	3 Wire Leads	40000 Hrs	Plastic	Plastic	0.09 A	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812S4011	3400 RPM	0.193 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	42.4 CFM	Ball	34 dB	-4 °F	158 °F	Tubeaxial	2.16 W	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	3	Wire Leads	3 Wire Leads	40000 Hrs	Plastic	Plastic	0.18 A	13.8 VDC	6 VDC
Sanyo Denki America Inc. 9A0812L4D01	1850 RPM	0.059 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	23 CFM	Ball	20 dB	-4 °F	158 °F	Tubeaxial	720 mW	12 VAC	Locked Rotor Sensor	CSA TUV UL	3	Wire Leads	3 Wire Leads	40000 Hrs	Plastic	Plastic	60 mA	13.8 VDC	7 V
Sanyo Denki America Inc. 9A0812M4021	2350 RPM	0.09 in H2O	80 mm	Square	80 mm	25 mm	0.199 lb	29.3 CFM	Ball	23 dB	-4 °F	158 °F	Tubeaxial	1.08 W	12 VAC	Locked Rotor Protection	CSA TUV UL	2 leads	Wire Leads	2 Wire Leads	40000 Hrs	Plastic	Plastic	0.09 A	13.8 VDC	6 VDC
