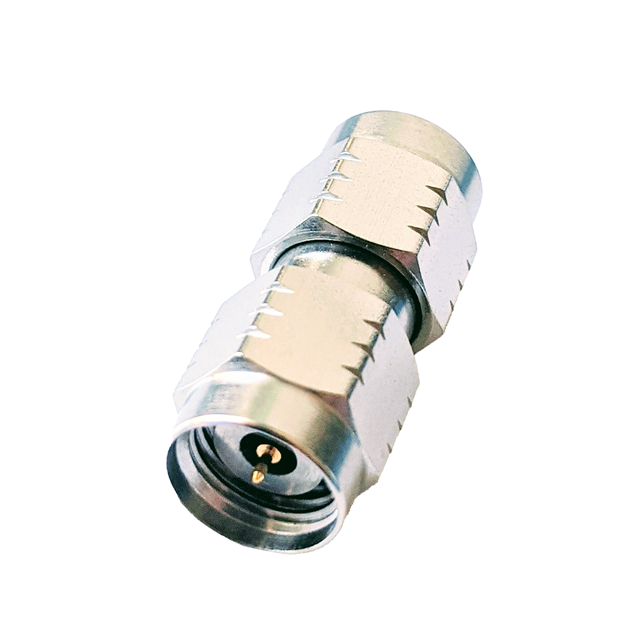

P1AD-24MM

Active

P1dB Inc

COAX ADAPT 2.4MM TO 2.4MM

Search across all available documentation for this part.

Active

P1dB Inc

COAX ADAPT 2.4MM TO 2.4MM

Technical Specifications

Parameters and characteristics for this part

COAX ADAPT 2.4MM TO 2.4MM

Part	Adapter Series [Max]	Adapter Series [Min]	Style	Adapter Type	Impedance	Frequency - Max [Max]	Center Gender	Mounting Type	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Center Contact Plating
P1dB Inc P1AD-24MM	2.4 mm	2.4 mm	Straight	Plug to Plug	50 Ohms	50 GHz	Male to Male	Free Hanging (In-Line)	Same Series	2.4 mm	2.4mm (APC-2.4, OS-50) Plug, Male Pin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.71

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms

Technical documentation and resources

No documents available
