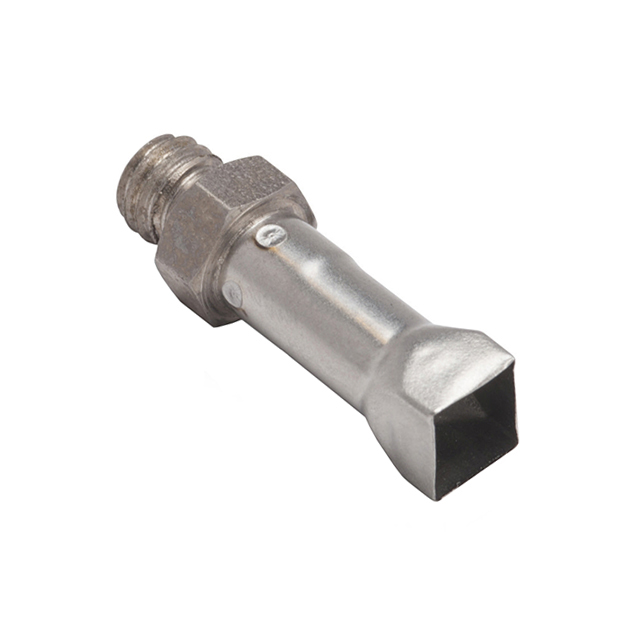

T0058727777N

Active

Apex Tool Group

Q02 HOTGAS NOZZLE 6 0X6 5

Search across all available documentation for this part.

Active

Apex Tool Group

Q02 HOTGAS NOZZLE 6 0X6 5

Technical Specifications

Parameters and characteristics for this part

Specification	T0058727777N

For Use With/Related Products	HAP1, HAP200
Length [x]	0.236 in
Length [x]	6 mm
Tip Shape	Nozzle
Tip Type	Rework (Hot Air), SMD
Width [x]	0.256 in
Width [x]	6.5 mm

Part	Tip Type	Tip Shape	Diameter [diameter]	Diameter [diameter]	Width [x]	Width [x]	For Use With/Related Products	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Length [x]	Length [x]
Apex Tool Group T0058727773N
Apex Tool Group T0058727774N	Rework (Hot Air) SMD	Flat	1.5 mm	0.059 "	8 mm	0.315 in	HAP1 HAP200
Apex Tool Group T0058727772N
Apex Tool Group T0058727822	Rework (Hot Air)	Nozzle Round	3 mm	0.118 in			HAP1 HAP200	50 °C	50 °C	550 °C	550 °C
Apex Tool Group T0058727786N	Rework (Hot Air) SMD	Round	1.8 mm	0.071 in			HAP1 HAP200
Apex Tool Group T0058727783N	Rework (Hot Air) SMD	Round			18.01 mm	0.709 "	HAP1 HAP200					18.01 mm	0.709 in
Apex Tool Group T0058727787N	Rework (Hot Air) SMD	Round	2.49 mm	0.098 in			HAP1 HAP200
Apex Tool Group T0058727777N	Rework (Hot Air) SMD	Nozzle			6.5 mm	0.256 in	HAP1 HAP200					6 mm	0.236 in
Apex Tool Group T0058727784N
Apex Tool Group T0058727781N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.50

General part information

Q02 HOTGAS NOZZLE 6 0X6 5

Technical documentation and resources
